DIN-rail Energy Meter (Single phase,4 module, multi-tariff meter)

  • Model: KLS11-DMS-005A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

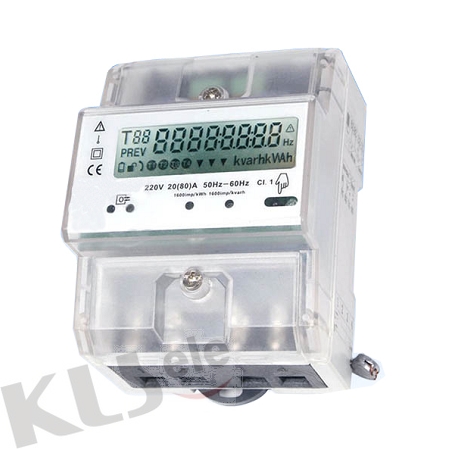

DIN-rail Energy Meter (Single phase,4 module, multi-tariff meter)
Functions And Characteristics:

  1. Forward and reverse energy measurement: accurately measure forward and reverse power
    2. With standard RS485 Interface and optics interface.
    3. Communication agreement meets IEC62056-21 or DL 645.
    4. Eight tariffs、eight period of time. It can record 30 times abnormity events, like power off、case open and so on. Forward energy measurement including the reverse active energy and can store separately. It also has anti-tamper and prepaid function as well as display and record load curve.
    5. Measurement in wide range and good ability in overload.
  2. It can display circuit instant voltage \instant current\Frequency\phase
  3. Data is freeze, it will check-out at the end of the month.

KLS11-DMS-005A   ( Single phase,4 module, multi-tariff meter,LCD TYPE,) Electrical  Characteristics:

Accuracy Class 1.0 Class
Reference Voltage ( Un) 110/120/220/230/240V AC
Rated Current  5(30)A; 10(40)A; 20(80)A
Operating Frequency Range 50-60Hz
Connection Mode direct type
Operating Current Range 0.4% I~ Imax
Internal Power Consumption <0.6W/3VA
Operating Humidity range <75%
Storage Humidity range <95%
Operating Temperature range -20º C ~+65º C
Operating Temperature range -30º C – +70º C

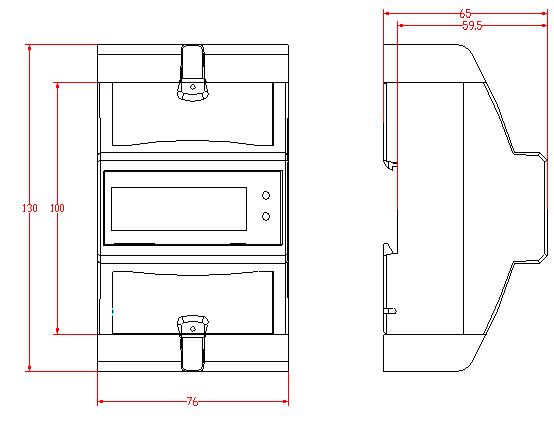

Overall dimensions (L×W×H) 100×76×65 / 116x76x65 / 130x76x65 mm
Weight(kg) about 0.2kg (net)
Executive Standard:  GB/T17215-2002; IEC61036-2000
Display LCD
crust transparent crust / Opaque  crust
