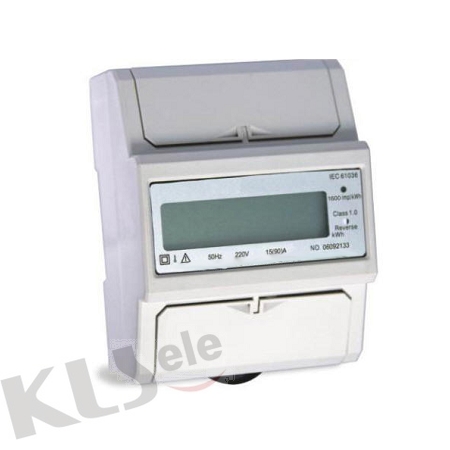

DIN-rail Energy Meter (Single Phase ,4 Module)

  • Model: KLS11-DMS-004B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

DIN-rail Energy Meter (Single Phase ,4 Module)
Type KLS11-DMS-004A single phase DIN rail modular energy meter is a kind of new style single phase electronic watt-hour meter, the meter completely accord with relevant technical requirements of class 1 and class 2 single phase energy meter stipulated in National standard GB/T17215-2002 and international standard IEC62053-21:2003. It can accurately and directly measure active energy consumption from single phase AC electricity net. It has following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

KLS11-DMS-004B    ( LCD TYPE,1P2W ) Electrical  Characteristics:

Accuracy Class 1.0 Class
Reference Voltage ( Un) 110/120/220/230/240V AC
Rated Current 1.5(6)A; 5(30)A; 10(40)A; 20(80)A;10(100)A
Impulse Voltage    6kV 1.2μs waveform
Operating Current Range 0.4% I~ Imax
Operating Frequency Range 50-60Hz
Internal Power Consumption <2W/10VA
Operating Humidity range <75%
Storage Humidity range <95%
Operating Temperature range -20º C ~+65º C
Storage Temperature range -30º C – +70º C
Overall dimensions (L×W×H) 100×76×65 / 116x76x65 / 130x76x65 mm
Weight(kg) about 0.2kg (net)
Display LCD
