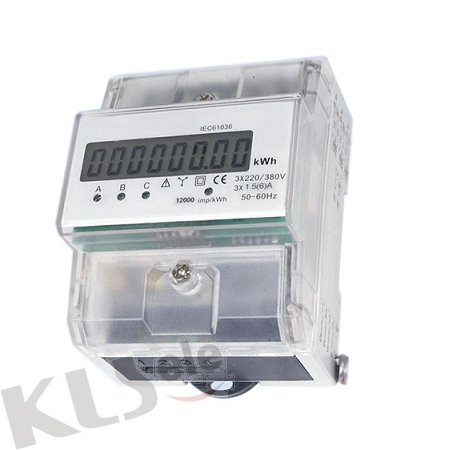

DIN-rail Energy Meter (Three phase,4 module)

  • Model: KLS11-DMS-010A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

DIN-rail Energy Meter (Three phase,4 module)
Functions And Characteristics:

  1. Forward and reverse energy measurement: accurately measure forward and reverse power
    2. Measurement in wide range and good ability in overload. Small volume.
    3.  Indication power for each phase.

KLS11-DMS-010A: (Three phase,4 module,LCD TYPE )   Electrical  Characteristics:

Accuracy Class 1.0 Class
Reference Voltage ( Un) 3*220V/380V;3*230V/400V
Rated Current  5(30)A; 10(40)A; 5(80)A
Operating Frequency Range 50-60Hz
Connection Mode direct type
Operating Current Range 0.4% I~ Imax
Internal Power Consumption <0.6W/3VA
Operating Humidity range <75%
Storage Humidity range <95%
Operating Temperature range -20º C ~+65º C
Operating Temperature range -30º C – +70º C

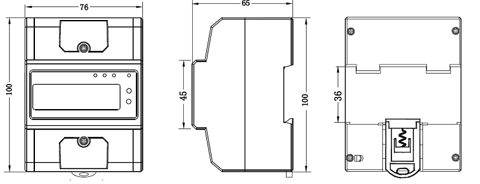

Overall dimensions (L×W×H) 100×76×65 / 116x76x65 / 130x76x65 mm
Weight(kg) about 0.2kg (net)
Executive Standard:  GB/T17215-2002; IEC61036-2000
Display LCD
crust transparent crust / Opaque  crust
