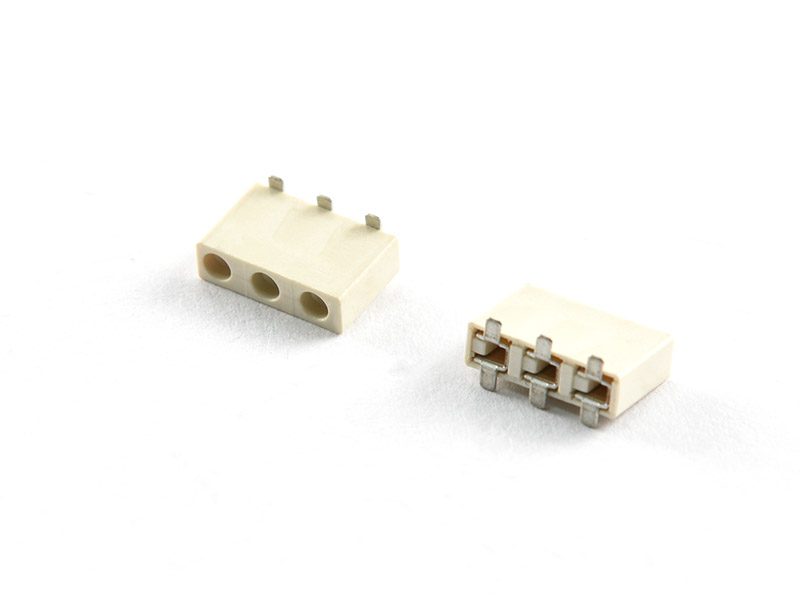

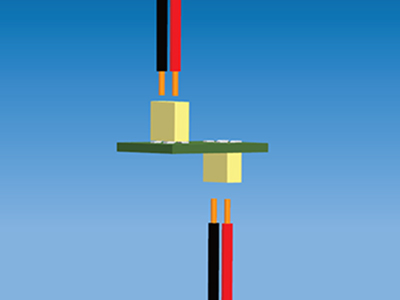

Wire to Board Link,Socket for LED Lighting,Pitch 3.5mm

Model: KLS2-L38
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

MATERIAL
Insulator:LCP,UL94V-0,Beige
Contacts:Phosphor Bronze,Tin-plated

Main Specifications
Poles:01~04P
Contact Resistance:≤20mΩ
Insulation Resistance:≥800MΩ
Rated Voltage:250V AC DC
Rated Current:1.0A AC DC
Withstanding Voltage:1000V AC/minute
Temperature Range: -25 ° C ~ + 105° C
