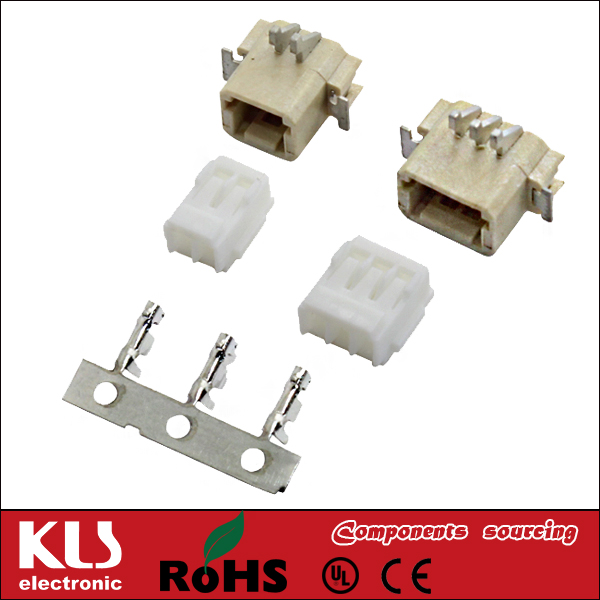

Wire to Board Link,Socket for LED Lighting,Pitch 1.5mm

Model: KLS2-L14
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

MATERIAL
Insulator:LCP,UL94V-0,Beige
Contacts:Brass,Tin-plated
Solder Tab:Brass,Tin-plated

Main Specifications
Poles:02~08P
Contact Resistance:≤20mΩ
Insulation Resistance:≥500MΩ
Rated Voltage:50V AC DC
Rated Current:1.5A AC DC
Withstanding Voltage:500V AC/minute
Temperature Range: -40 ° C ~ + 120° C
