Telephone Splitter RJ11/RJ12 /RJ45

  • Model: KLS12-179-6P4C/

    KLS12-179-6P4C/

    KLS12-179-8P8C

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

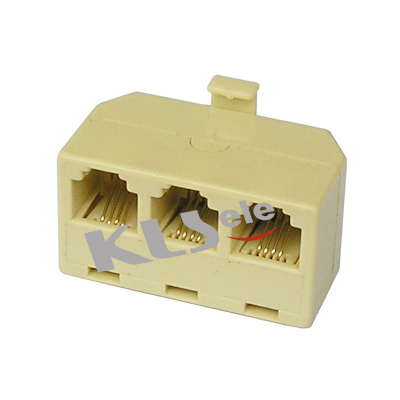

Telephone Splitter RJ11/RJ12 /RJ45
RJ11 :  KLS12-179-6P4C
RJ12 :  KLS12-179-6P6C
RJ45 :  KLS12-179-8P8C

MATERIAL
HOUSING: ABS
CONTACT: PHOSPHOR BRONZE,HARD GOLD
SHIELDINJG: 0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING: 3u INCH,6u INCH,15u INCH,30u INCH,50u INCH

ELECTRICAL
CURRENT RATING: 1.5AMPS
VOLTAGE RATING: 125VAC
WITHSTANDING VOLTAGE: AC1000V RMS 50Hz or 60Hz 1Min
INSULATION RESISTANCE: 100MEGOHMS MIN
CONTACT RESISTANCE: 39MILLMHOS MAX

WORKING  TEMPERATURE :  -35°C ~80°C
