Telephone Plug Adapter RJ11/RJ12 /RJ45

  • Model: KLS12-177-6P4C/

   KLS12-177-6P6C/

    KLS12-177-8P8C

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

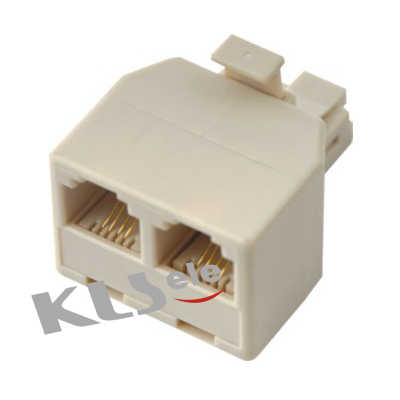

Telephone Plug Adapter RJ11/RJ12 /RJ45
RJ11 Modular Adapter :  KLS12-177-6P4C
RJ12 Modular Adapter :  KLS12-177-6P6C
RJ45 Modular Adapter :  KLS12-177-8P8C

MATERIAL
HOUSING: ABS
CONTACT:PHOSPHOR BRONZE,HARD GOLD
SHIELDINJG:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING:3u INCH,6u INCH,15u INCH,30u INCH,50u INCH
ELECTRICAL
CURRENT RATING:1.5AMPS
VOLTAGE RATING:125VAC
WITHSTANDING VOLTAGE:AC1000V RMS 50Hz or 60Hz 1Min
INSULATION RESISTANCE:100MEGOHMS MIN
CONTACT RESISTANCE:39MILLMHOS MAX

WORKING  TEMPERATURE :  -35°C ~80°C
