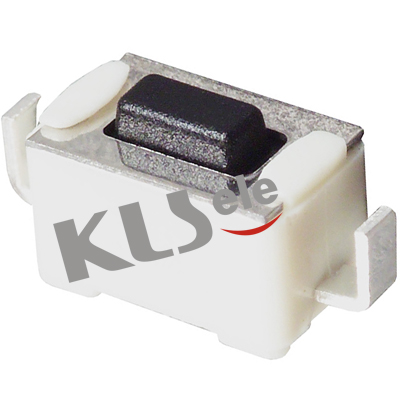

Tactile Switch

  • Model: KLS7-TS3612
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Tactile Switch
ELECTRICAL
1.Rating: 20mA 12V
2.Contact Resistance : 50mΩ Max
3.Insulation Resistance: 100MΩ Min
4.Dielectric Strength : AC250V(50/60Hz for 1minute)
5.Electrically Life: 100 000cycles
6.Environment temperature:-25ºC~+70ºC
7.Operating Force: 160/250(±30gf)
8.Seal temperature:260ºC~ 280ºC
