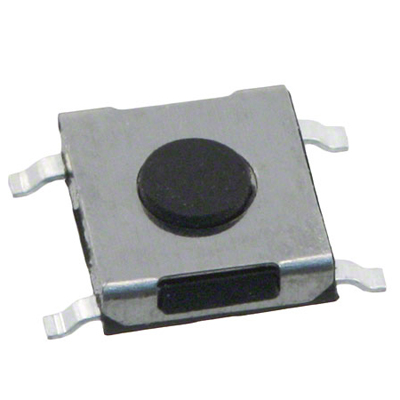

SMD Tactile Switch

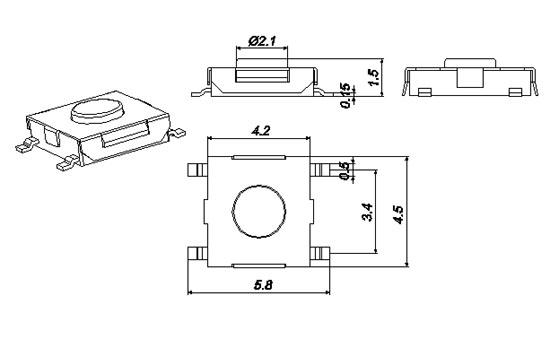

SIZE: 4.2*4.5mm
Rating: 50mA 12VDC
Contact Resistance : 50mΩ Max.
Insulation Resistance: 100MΩ Min.
Dielectric Strength : AC250V(50/60Hz for 1minute)
Electrically Life: 100,000cycles
Environment temperature: -20℃-70℃
Operating Force: 180/250(±30gf)
Seal temperature:260℃-280℃

ORDER INFORMATION
KLS7-TS4407-1.5-180-B
(1) (2)
(1)-Operating Force :180~250gf
(2)-Packing: B=Bulk T=Tape
