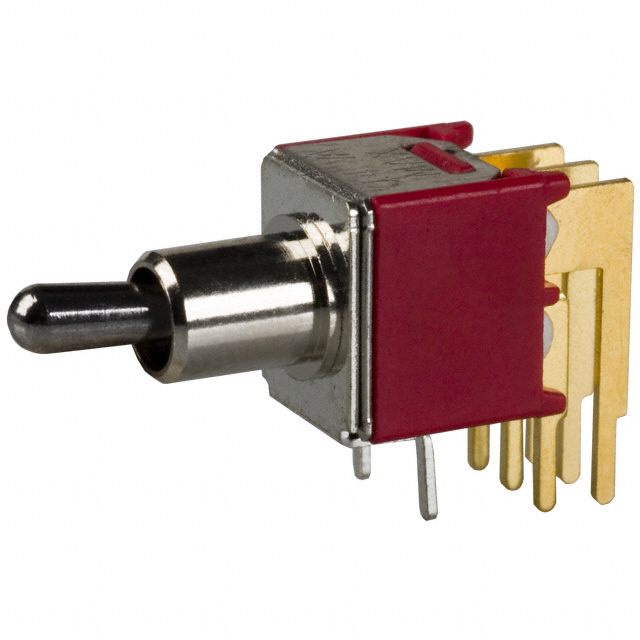

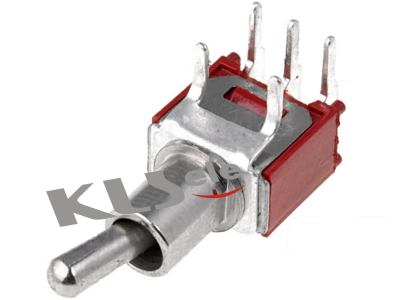

Sub-miniature Toggle switch

  • Model: KLS7-SMS-102-C3 / KLS7-SMS-103-C3/

   KLS7-SMS-202-C3 / KLS7-SMS-203-C3

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details
  • PDF

KLS7-SMS-102-C3         ON-ON                 3P
KLS7-SMS-103-C3         ON-OFF-ON         3P

KLS7-SMS-202-C3         ON-ON                 6P
KLS7-SMS-203-C3         ON-OFF-ON         6P
Sub-miniature Toggle switch
SPECIFICATIONS
Rating: 3A 125VAC; 1.5A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1000V AC 1 Minute
Operating Temperature:-25ºC +65ºC
Electrical Life :20,000 cycles

PDF

KLS7-SMS-102-C3.pdf
