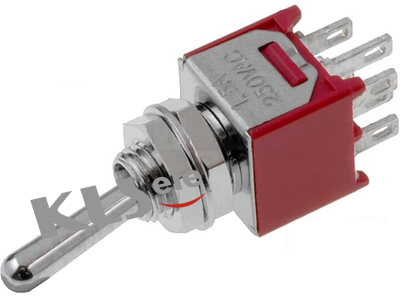

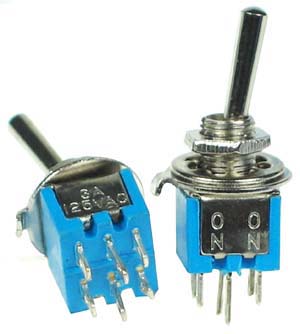

Sub-miniature Toggle switch
- Product Details
KLS7-SMS-201-A1 ON-OFF 4P
KLS7-SMS-201-2A1 ON-OFF 4P
KLS7-SMS-202-A1 ON-ON 6P
KLS7-SMS-201-A2 ON-OFF 4P
KLS7-SMS-202-A2 ON-ON 6P
KLS7-SMS-203-A2 ON-OFF-ON 6P
KLS7-SMS-202-A2 ON-ON 6P
KLS7-SMS-203-A2 ON-OFF-ON 6P
Sub-miniature Toggle switch
SPECIFICATIONS
Rating: 3A 125VAC; 1.5A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1000V AC 1 Minute
Operating Temperature:-25ºC +65ºC
Electrical Life :20,000 cycles
