Stepper Motor Counter

  • Model: KLS11-KQ18 ( 4+1 small )
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

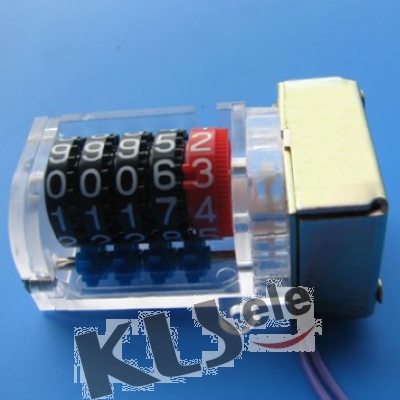

Stepper Motor Counter
High accuracy and defective percentage: <0.3%
Thicker double shielded metal case : 1.1 mm
We can provide two kinds of reverse-and anti-reverse function of product

Work voltage: 2.5V-5V
DC impedance: 450Ω±50Ω At 20
Applicable pulse width: 32ms
Applicable frequency: 3HZ
Deferent moment: 57μNm/4.5V
Work temperature: -40-+75
Counter range: 0.0 to 9999.9
Figure color: 4 black 十 1 Red
Drive ratio: 100:1
Use life: pulse exceed a hundred million times (more ten years)
Antimagnetic capability: Accord GB/T17215 standard request
Other technical condition: Accord JB5459-91 standard request
