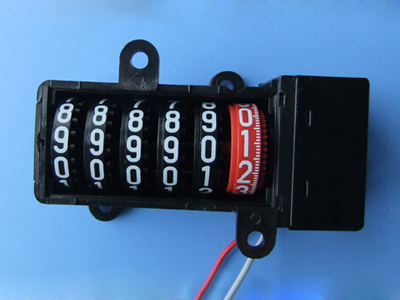

Energy Meter Counter

  • Model: KLS11-KQ19A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Work voltage rating:3V-5.5V
Working pulse width rating: ≥80ms
Rated working pulse interval: ≥50ms
Coil resistance:450±Ω20℃
Velocity ratio:100:1,200:1,400:1,800:1,1000:1
Step motor driving torque:30μNm/4.5V
Specifications(quantity of character wheel):4+1(four integers with one decimal)
5+1(five integers with one decimal)
6+1(six integers with one decimal)
Character wheel material:PC
Rotating direction of character wheel:clockwise rotation only
Range of working ambient temperature:-35oC~+75oC
Variable-speed gear material:polyoxymethylene
Base frame material:aluminum alloy base frame
Error-free working period:≥one billion pulses
Installation dimension:upper fitting hole space:low fitting hole space
Motor position on counter:horizontal or vertical
