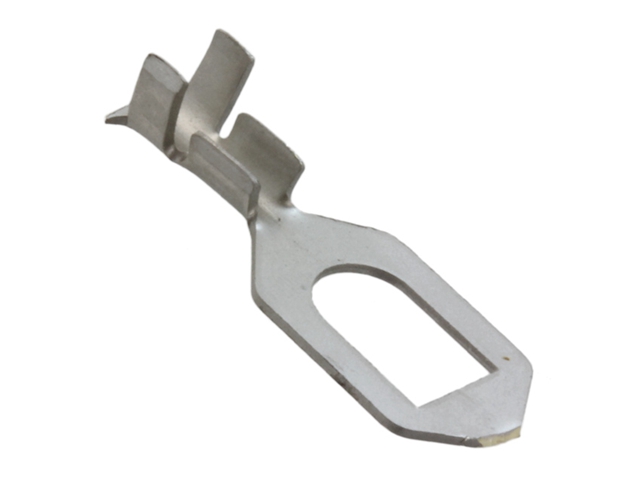

Spade Tongue Terminal

Model: KLS8-01117
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

P/N	Material	Plating	Dimension(mm)									Wire Range	Q’TY	REMARKS
P/N	Material	Plating	D	W	E	L	T	H1	WS	H2	IS	(AWG)	REEL	REMARKS
L-KLS8-01117-3201	Brass	Tin	3.20	7.2	6.30	16.70	0.40	3.00	3.00	3.50	3.80	20~22	10000
L-KLS8-01117-3202	Brass	Tin	3.20	7.2	6.30	16.70	0.40	3.30	3.20	4.60	4.60	16~18	10000
L-KLS8-01117-3701	Brass	Tin	3.70	7.2	6.30	16.70	0.40	3.00	3.00	3.50	3.80	18~22	10000
L-KLS8-01117-3702	Brass	Tin	3.70	7.2	6.30	16.70	0.40	3.30	3.20	4.60	4.60	16~18	10000
L-KLS8-01117-4201	Brass	Tin	4.20	7.2	6.30	16.70	0.40	3.00	3.00	3.50	3.80	20~22	10000
L-KLS8-01117-4202	Brass	Tin	4.20	7.2	6.30	16.70	0.40	3.30	3.00	4.60	4.60	16~18	10000
