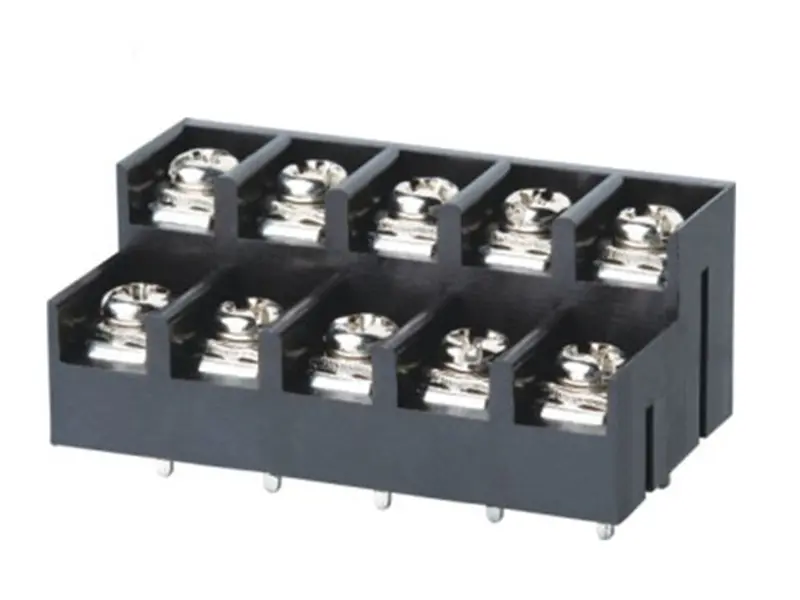

Pitch 8.50mm Barrier Terminal Block

  • Model: KLS2-35M-8.50
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Screw:         M3.0,Steel,Ni Plated
Pin header:  Brass, Tin Plated
Housing:      PA66, UL94V-0,Black

Electrical:
Rated voltage:  300V
Rated current:  10A
Wire range:      22~16AWG  1.5mm²
Contact Resistance: 20 m Ω
Insulation resistance:  500MΩ/DC500V
Withstand voltage:      AC2000V / 1 min

Mechanical:
Temp. Range:   -40 ° C ~ + 105 ° C
Torque:            0.5Nm (4.43Lb.in)
