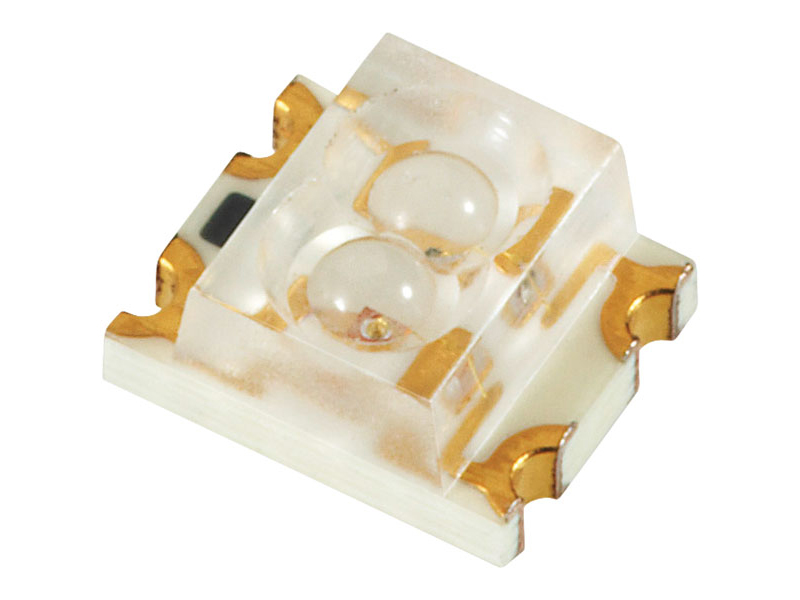

SMD RGB LED

Model: KLS9-RGB Type
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details

Part.No.	Package	Size	Chip Emitted Color	Chip Peak wave Length	Lens Appearance	Absolute Max. Ratings				Electro-optical Data(at 20mA)			Viewing angle 2θ1/2
				Chip Peak wave Length		Absolute Max. Ratings				Vf		Iv
				λp		Δλ	Pd	If	Peak	type	max	type
		mm		nm		nm	mw	mA	mA	V	V	mcd	deg
KLS9-T0603RGB	0603	1.6×1.5	Ultra Bright RGB Full Color	470	Water Clear	20-30	70-90	30	70-100	2.2-3.2	2.6-3.6	100-500	120
KLS9-T0805RGB	0805	2.0×1.25	Ultra Bright RGB Full Color	470	Water Clear	20	70-100	30	70-100	2.2	3.6	100-500	120
KLS9-T1206RGB	1206	3.2×2.7	Ultra Bright RGB Full Color	470	Water Clear	20-30	70-90	30	70-100	2.2-2.6	3.2-3.6	180-500	120
