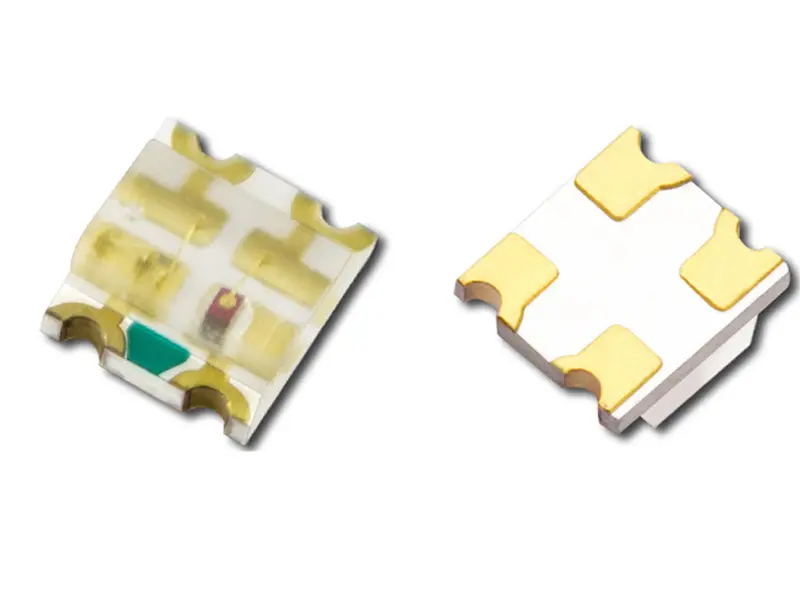

SMD Bi-Color LED
- Product Details
| Part.No. | Package | Size | Chip Emitted Color | Chip Peak wave Length |
Lens Appearance |
Absolute Max. Ratings | Electro-optical Data(at 20mA) | Viewing angle 2θ1/2 |
|||||
| Vf | Iv | ||||||||||||
| λp | Δλ | Pd | If | Peak | type | max | type | ||||||
| mm | nm | nm | mw | mA | mA | V | V | mcd | deg | ||||
| KLS9-T0603URUYGC | 0603 | 1.6×1.5 | Ultra Bright Red/Yellow Green Bi-Color | 578 | Water Clear | 20 | 70 | 30 | 70 | 2.2 | 2.6 | 30-100 | 120 |
| KLS9-T0603URUBC | 0603 | 1.6×1.5 | Ultra Bright Red/Blue Bi-Color | 470 | Water Clear | 20-30 | 70-90 | 30 | 70-100 | 2.2-3.2 | 2.6-3.6 | 100 | 120 |
| KLS9-T0805URUYGC | 0805 | 2.0×1.25 | Ultra Bright Red/Yellow Green Bi-Color | 572 | Water Clear | 20 | 70 | 30 | 70 | 2.2 | 2.6 | 30-100 | 120 |
| KLS9-T0805URUBC | 0805 | 2.0×1.25 | Ultra Bright Red/Blue Bi-Color | 630 | Water Clear | 20-30 | 70-90 | 30 | 70-100 | 2.2-2.6 | 3.2-3.6 | 100 | 120 |
| KLS9-T0805URUGC | 0805 | 2.0×1.25 | Ultra Bright Red/Green Bi-Color | 521 | Water Clear | 20-30 | 70-90 | 30 | 70-100 | 2.2-2.6 | 3.2-3.6 | 100-500 | 120 |
| KLS9-T1206URUBC | 1206 | 3.2×2.7 | Ultra Bright Red/Blue Bi-Color | 470 | Water Clear | 20-30 | 70-90 | 30 | 70-100 | 2.2-2.6 | 3.2-3.6 | 150 | 120 |
| KLS9-T1206URUGC | 1206 | 3.2×2.7 | Ultra Bright Red/Green Bi-Color | 520 | Water Clear | 30 | 70-90 | 30 | 70-100 | 2.2-2.6 | 3.2-3.6 | 150-500 | 120 |
| KLS9-T1206URUYGC | 1206 | 3.2×2.7 | Ultra Bright Red/Yellow Green Bi-Color | 572 | Water Clear | 20 | 70 | 30 | 70 | 2.2 | 2.6 | 30-100 | 120 |
