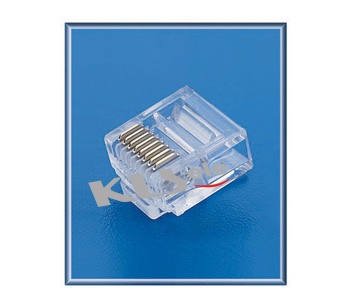

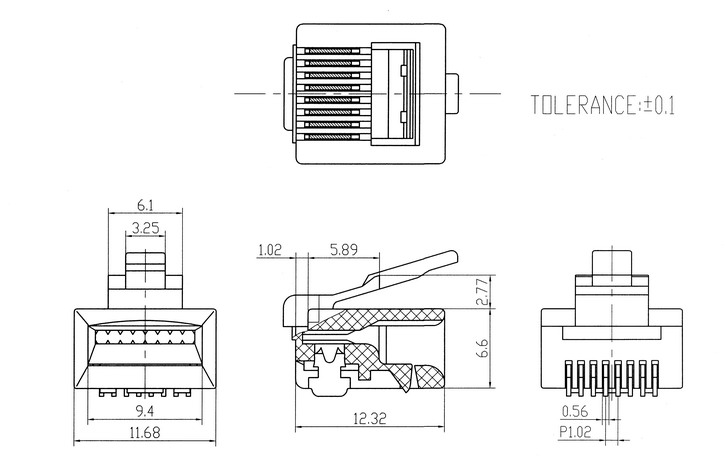

RJ45 Modular Plug
MATERIAL:
1.Housing :Polycarbonate(pc) UL 94V-0 or UL 94V-2
2.Contact :Phosphor Bronze, Hard Gold plated over nickel
3.Shielding:0.25mm Thickness Copper Alloy With Tin plated
4.Gold plating:3u inch,6u inch,15u inch,30u inch,50u inch

ELECTRICAL:
1.Current Rating:1.5 Amps
2.Voltage Rating:125 Volts AC
3.Insulation Resistance:100 Megohms Min.
4.Contact Resistance:39 Millmhos Max.
5.Withstanding Voltage:1000VAC RMS 50Hz or 60Hz 1 Min.

MECHANICAL:
CABLE TO PLUG TENSILE STRENGTH:7.7Kg MINI
DURABILITY:750MATING CYCLES MINI
WORKING TEMPERATURE:-40°C ~60°C
