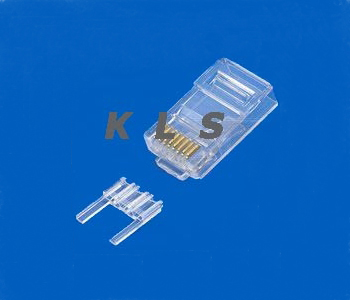

Modular Plug CAT6

  • Model: KLS12-MP02-CAT6-

    8P

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Modular Plug CAT6
MATERIAL:
1.Housing :Polycarbonate(pc) UL 94V-0 or UL 94V-2
2.Contact :Phosphor Bronze, Hard Gold plated over nickel
3.Shielding:0.25mm Thickness Copper Alloy With Tin plated
4.Gold plating:3u inch,6u inch,15u inch,30u inch,50u inch

ELECTRICAL:
1.Current Rating:1.5 Amps
2.Voltage Rating:125 Volts AC
3.Insulation Resistance:100 Megohms Min.
4.Contact Resistance:39 Millmhos Max.
5.Withstanding Voltage:1000VAC RMS 50Hz or 60Hz 1 Min.

MECHANICAL:
CABLE TO PLUG TENSILE STRENGTH:7.7Kg MINI
DURABILITY:750MATING CYCLES MINI
WORKING TEMPERATURE:-40°C ~60°C
