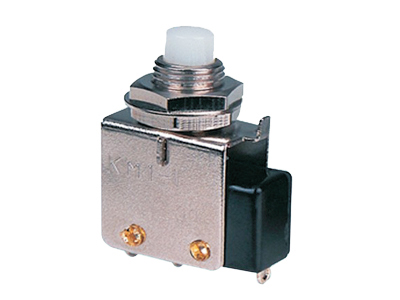

Panel mount push button switch / single switch

  • Model: KLS7-KM1-1
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Plastic parts material: PBT
Copper Material: Brass H62
Silver contact material: silver
Cadmium oxide AgCdO
Specification:
1.Rating:3A 250V / 5A 125V
2.Contact R: ≤50mΩ
3.Insulation R: ≥100MΩ
4.Dielectric strengty:1500V~2500V
5.Setting Temperature:-55%%dC~120%%dC
6.Electrical Life:50000 Cycles
7.Machine Life:100000 Cycles
8.Operation Force:0.3N~3.5N
9. Manual Soldering 300℃for 5s
