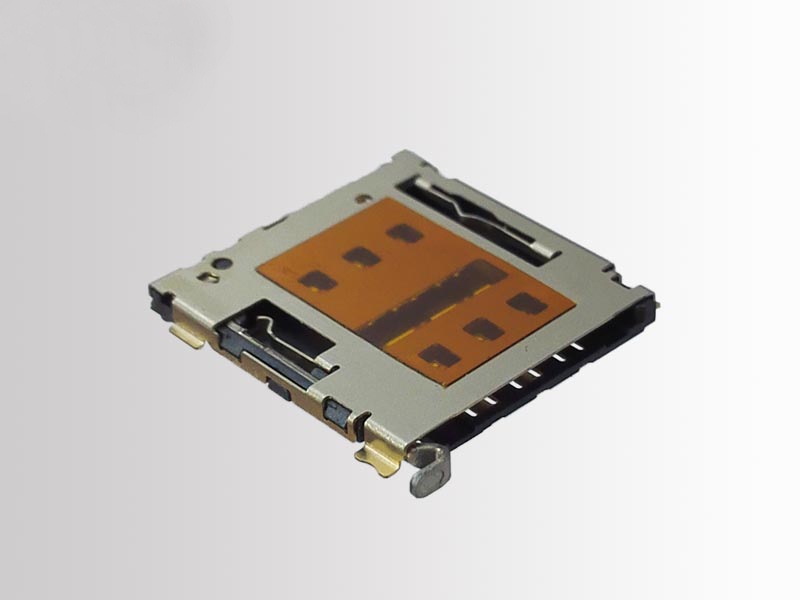

Nano SIM Card Connector,Tray type,6Pin,H1.5mm,with CD Pin

  • Model: KLS1-SIM-102
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Nano SIM Card Connector,Tray type,6Pin,H1.5mm,with CD Pin

Electrical:
Current Rating:1 Amp/Pin.MAX.
Voltage:30V DC.MAX
Low Level Contact Resistance:30mΩ Max.Initially.
Dielectric Withstanding Voltage:500V AC MIN.For 1 minute.
Insulation Resistance:100MΩ Min.500V DC .For 1 minute.
Durability:1000 Cycles.
Operating Temperature: -45ºC~+85ºC
