Miniature Micro Switch

  • Model: KLS7-DS032
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

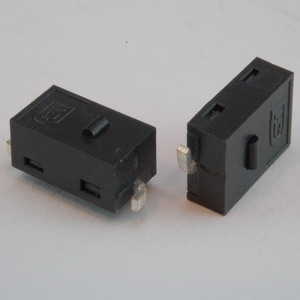

Miniature Micro Switch

SPECIFICATION:
Rating: 0.1A 48V DC / 0.1A 125V AC

SIZE: 8.6 x 4.8 x 3.5 mm

Operating Force: 70g

Withatand Voltage: AC 250 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 300MΩ

Operating Temperature: -25oC ~ +80oC

Mechanical Life: 1000,000 Cycles

Electrical Life: 1000,000 Cycles
