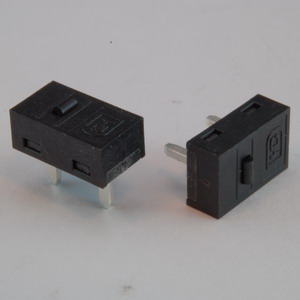

Miniature Micro Switch

SPECIFICATION:

Rating: 0.1A 125V AC / 0.1A 48V DC

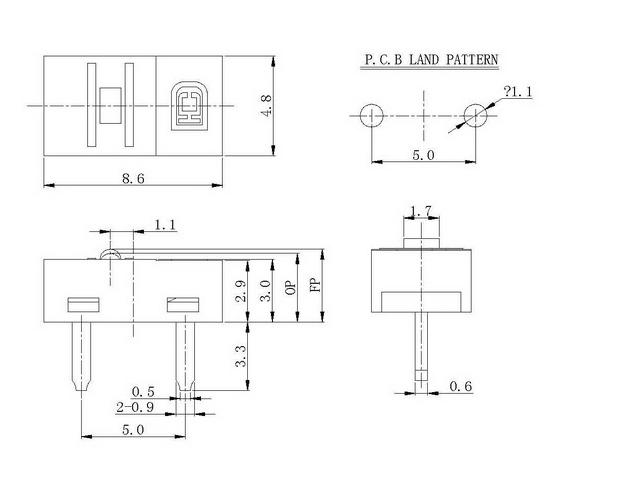

SIZE: 8.6 x 4.8 x 3.5 mm
Pitch: 5.0 mm

Operating Force: 70g

Withatand Voltage: AC 250 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 300MΩ

Operating Temperature: -25oC ~ +80oC

Mechanical Life: 1000,000 Cycles

Electrical Life: 1000,000 Cycles
