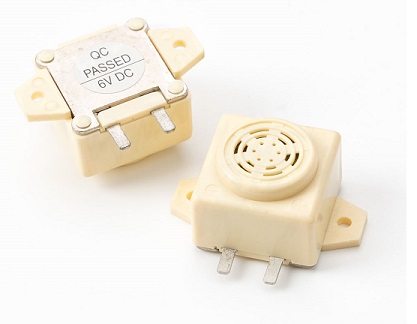

Mechanical Buzzer

Model: KLS3-MB-2619
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Mechanical Buzzer

Size: 26*19.5mm

KLS3-MB-2619-C HideTechnical Data


Rated Voltage	24VDC
Operating Voltage	4-28VDC
Max.Rated Current	55mA
Min.S.P.L.(@20cm)	95dB
Resonant Frequency	400 ±100Hz
Operating Temp	-20~+60°C
Weight	17g

Order Code	Rated Voltage	Min.S.P.L.(@20cm)	Operating Voltage

KLS3-MB-2619-A	6VDC	90dB	4-8

KLS3-MB-2619-B	12VDC	95dB	7-16

KLS3-MB-2619-C	24VDC	95dB	20-28

PDF

KLS3-MB-2619.pdf
