M19 Connector

  • Model: KLS15-225-M19
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

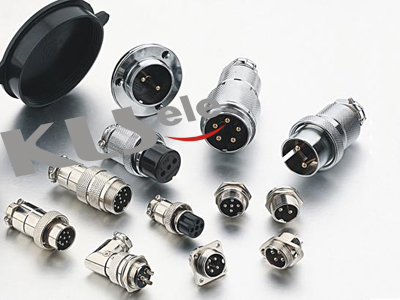

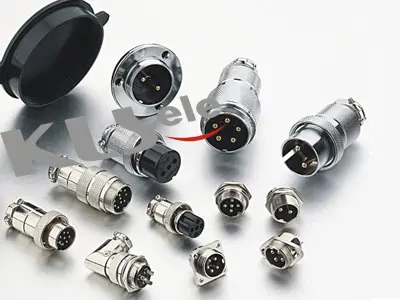

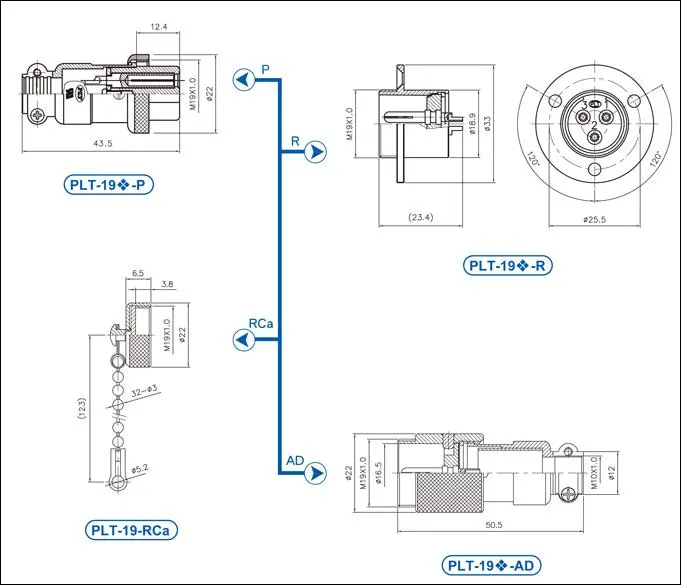

M19 Circular Connector (Safty apporval : UL, Water proof  Ip≥55)
Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive.

ORDER INFORMATION:
KLS15-225-M19-2M1
(1) (2)(3)
(1) M19:  M19 Shell Size  (Other M25,M30,M35Type)
(2) 2:   2 pins     (2,3,4,5,6,7,8,9,10,11,12,16,20,pins)
(3) F1-Straight Plug Socket   F2-Docking Plug Pin   F3-Straight Plug Socket    M1-Receptacle Pin
M2-Through-wall
Receptacle Pin   M4-Round Flange Receptacle Pin

KLS15-225-M19 TYPE  Electrical Characteristics:

2P 3P 4P 5P 6P 7P
8P 9P 10P 11P

Contacts No.:    2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P
Rated current / Voltage/ 10A-150V 7A-150V 5A-125V 3A-125V
Operation Limit  Voltage (AC.V.rms) 400 300 250 200
Withstanding Voltage (AC.V.rms) 1 minute 1500
Insulation resistance (MΩ) at DC500V 2000
Contact resistance (mΩ) at DC1A 10
soder cup mouth diameter Ø(mm) 2 1.2 0.8
solder diameter Ø(mm) 2.95 2 1.5

TYPE TYPE Pins Ordering Water-proof



Straight Plug Socket 2 M19-2F1 IP55
3 M19-3F1 IP55
4 M19-4F1 IP55
Straight Plug Socket 5 M19-5F1 IP55
Straight Plug Socket 6 M19-6F1 IP55
7 M19-7F1 IP55
8 M19-8F1 IP55
9 M19-9F1 IP55
10 M19-10F1 IP55

Docking Plug Pin 2 M19-2F2 IP55
3 M19-3F2 IP55
4 M19-4F2 IP55
Docking Plug Pin 5 M19-5F2 IP55
Docking Plug Pin 6 M19-6F2 IP55
7 M19-7F2 IP55
8 M19-8F2 IP55
9 M19-9F2 IP55
10 M19-10F2 IP55

Straight Plug Socket 2 M19-2F3 IP55
3 M19-3F3 IP55
4 M19-4F3 IP55
Straight Plug Socket 5 M19-5F3 IP55
Straight Plug Socket 6 M19-6F3 IP55
7 M19-7F3 IP55
8 M19-8F3 IP55
9 M19-9F3 IP55
10 M19-10F3 IP55

Receptacle Pin 2 M19-2M1 IP55
3 M19-3M1 IP55
4 M19-4M1 IP55
Receptacle Pin 5 M19-5M1 IP55
Receptacle Pin 6 M19-6M1 IP55
7 M19-7M1 IP55
8 M19-8M1 IP55
9 M19-9M1 IP55
10 M19-10M1 IP55

Penetrate a wall assembling

Through-wall Receptacle Pin 2 M19-2M2 IP55
3 M19-3M2 IP55
4 M19-4M2 IP55
Through-wall Receptacle Pin 5 M19-5M2 IP55
Through-wall Receptacle Pin 6 M19-6M2 IP55
7 M19-7M2 IP55
8 M19-8M2 IP55
9 M19-9M2 IP55
10 M19-10M2 IP55

xx xx xx xx
xx xx xx
xx xx xx
xx xx xx xx
xx xx xx xx
xx xx xx
xx xx xx
xx xx xx
xx xx xx

Round Flange Receptacle Pin 2 M19-2M4 IP55
3 M19–3M4 IP55
4 M19–4M4 IP55
Round Flange Receptacle Pin 5 M19–5M4 IP55
Round Flange Receptacle Pin 6 M19–6M4 IP55
7 M19-7M4 IP55
8 M19-8M4 IP55
9 M19-9M4 IP55
10 M19-10M4 IP55
