M12 Connector
- Product Details

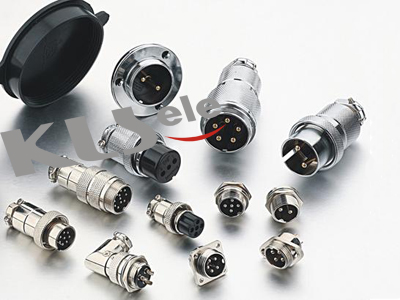

M12 Circular Connector (Safty apporval : UL / Water proof Ip≥55 )
Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive.
Order Information:
KLS15-225-M12-2M1
(1) (2)(3)
(1) M12: M12 Shell Size
(2) 2: 2 pins (2,3,4,5,6,pins)
(3) F1-Plug Socket F2-Docking Plug Pin M1-Receptacle Pin M2-Through-wall Receptacle Pin
KLS15-225-M12 TYPE Electrical Characteristics:
| 2P | 3P | 4P | 5P | 6P |
 |
 |
 |
 |
 |

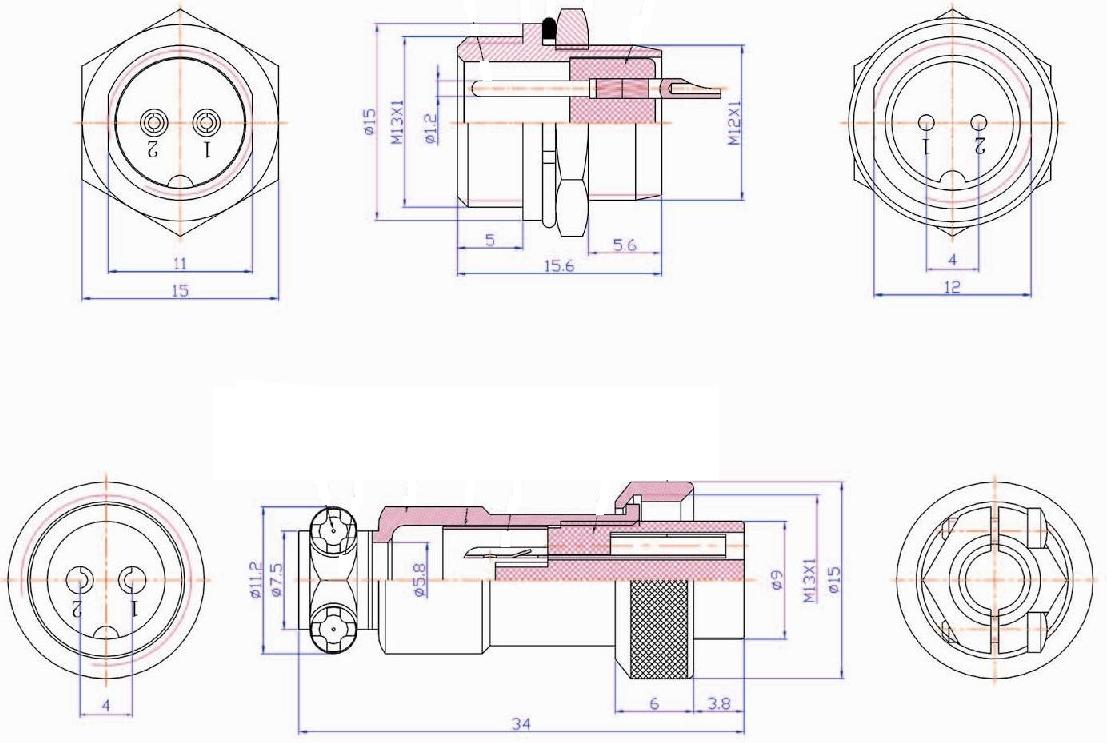

| Contacts No.: | 2P | 3P | 4P | 5P | 6P |
| Rated current / Voltage/ | 5A-125V | 5A-125V | 5A-125V | ||
| Operation Voltage (AC.V) | 200 | ||||
| Withstanding Voltage (AC.V) | 1500 | ||||
| Insulation resistance (MΩ)DC500V | 1500 | ||||
| Contact resistance (mΩ)DC1A | 10 | ||||
| soder cup mouth diameter Ø(mm) | 0.9 | ||||
| solder diameter Ø(mm) | 1.15 | ||||
| TYPE | TYPE | Pins | Ordering | Water-proof |
|
Plug Socket | 2 | M12-2F1 | IP55 |
| 3 | M12-3F1 | IP55 | ||
| 4 | M12-4F1 | IP55 | ||
| Plug Socket | 5 | M12-5F1 | IP55 | |
| Plug Socket | 6 | M12-6F1 | IP55 | |
| X | X | X | ||
| X | X | X | ||
| X | X | X | ||
| X | X | X | ||
|
|
Docking Plug Pin | 2 | M12-2F2 | IP55 |
| 3 | M12-3F2 | IP55 | ||
| 4 | M12-4F2 | IP55 | ||
| Docking Plug Pin | 5 | M12-5F2 | IP55 | |
| Docking Plug Pin | 6 | M12-6F2 | IP55 | |
| X | X | X | ||
| X | X | X | ||
| X | X | X | ||
| X | X | X | ||
|
Receptacle Pin | 2 | M12-2M1 | IP55 |
| 3 | M12-3M1 | IP55 | ||
| 4 | M12-4M1 | IP55 | ||
| Receptacle Pin | 5 | M12-5M1 | IP55 | |
| Receptacle Pin | 6 | M12-6M1 | IP55 | |
| X | X | X | ||
| X | X | X | ||
| X | X | X | ||
| X | X | X | ||
|
Through-wall Receptacle Pin | 2 | M12-2M2 | IP55 |
| 3 | M12-3M2 | IP55 | ||
| 4 | M12-4M2 | IP55 | ||
| Through-wall Receptacle Pin | 5 | M12-5M2 | IP55 | |
| Through-wall Receptacle Pin | 6 | M12-6M2 | IP55 | |
| X | X | X | ||
| X | X | X | ||
| X | X | X | ||
| X | X | X |
