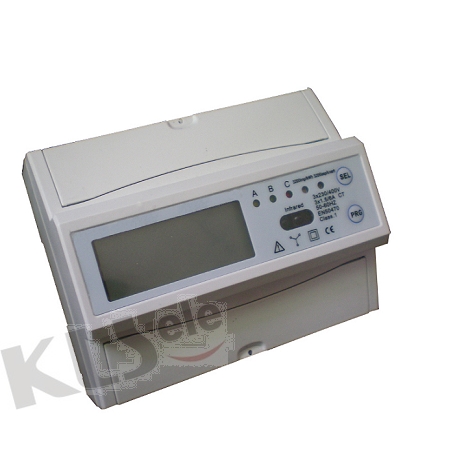

DIN-rail Energy Meter (Three phase,6 module)
Features
With RS485 and Far-infrared communication port
Communication baud rate can be set 1200,2400,4800,9600,19200(option)
Three phases electricity Energy meter for DIN-rail mounting (six modules). CT Changing-Ratio fully programmable.Active energy measurement in three phases four wires alternating current circuits.
Standard compliance
GB/T17215-2002
IEC62053-21:2003
| Accuracy Class | 1.0 Class |
| Reference Voltage ( Un) | 230/400V AC (3~) |
| Operating Voltage | 161/279 – 300/520V AC (3~) |
| Impulse Voltage | 6kV -1.2μS waveform |
| Rated Current (Ib ) | 1.5 /10 A |
| Maximum Rated Current (Imax) | 6 /100A |
| Operating Current Range | 0.4% Ib ~ Imax |
| Operating Frequency Range | 50Hz± 10% |
| Internal Power Consumption | <2W/10VA |
| Operating Humidity range | <75% |
| Storage Humidity range | <95% |
| Operating Temperature range | -10º C ~+50º C |
| Storage Temperature range | -30º C – +70º C |
| Overall dimensions(mm) | 100×122×65 / 116x122x65 / 130x122x65 mm |
| Weight(kg) | about 0.7kg (net) |
| CT Changing-Ratio | Fully Programmable( 27 ratios) |
| Communication port | RS485 and Far infrared port |
| Data save | More than 20 years |
| Protocol | MODBUS RTU |
