DIN-rail Energy Meter (Single Phase,1 Module)
- Product Details
DIN-rail Energy Meter (Single Phase,1 Module)
Type KLS11-DMS-001 single phase Mini DIN rail Modular watt-hour meter is a kind of new style single phase electronic watt-hour meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 and class 2 single phase energy meter stipulated in National standard GB/T17215-2002 and international standard IEC62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. It can display total energy consumption by LCD or step type impulse register. It has following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

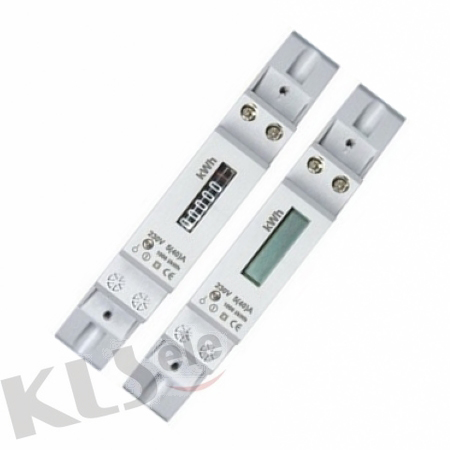

Single Phase One Modular Meter
KLS11-DMS-001A ( Electronic counter TYPE,1P2W ) Electrical Characteristics:
| Accuracy Class | 1.0 class |
| Reference Voltage ( Un) | 110/220/230/240V AC |
| Operating Voltage | 160-300V AC |
| Impulse Voltage | 6KV 1.2μS waveform |
| Rated Current (Ib ) | 5 A |
| Maximum Rated Current (Imax) | 32/40/45/50/65 A |
| Operating Current Range | 0.4% Ib ~ Imax |
| Operating Frequency Range | 50-60 Hz |
| Internal Power Consumption | <2W/10VA |
| Operating Humidity range | <75% |
| Storage Humidity range | <95% |
| Operating Temperature range | -20º C ~+65º C |
| Storage Temperature range | -30º C – +70º C |

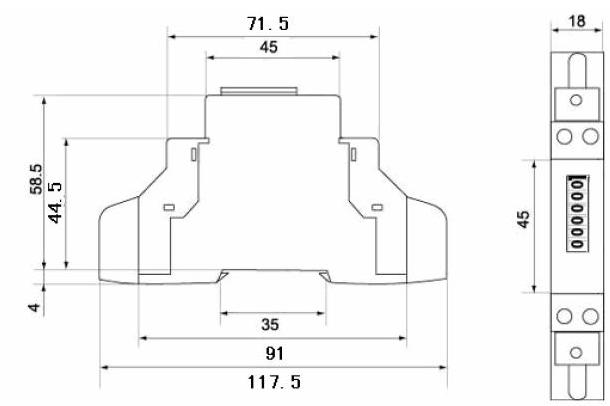

| Overall dimensions(L×W×H) | 117.5×18×58 mm |
| Weight(kg) | about 0.13kg (net) |
| Display | Electronic counter 5+1 = 99999.9kWh |
KLS11-DMS-001B( LCD TYPE,1P2W ) Electrical Characteristics:
| Accuracy Class | 1.0 class |
| Reference Voltage ( Un) | 230V AC |
| Operating Voltage | 160-300V AC |
| Impulse Voltage | 6KV 1.2μS waveform |
| Rated Current (Ib ) | 5 A |
| Maximum Rated Current (Imax) | 25/32/40/45/50/65 A |
| Operating Current Range | 0.4% Ib ~ Imax |
| Operating Frequency Range | 50-60Hz |
| Internal Power Consumption | <2W/10VA |
| Operating Humidity range | <75% |
| Storage Humidity range | <95% |
| Operating Temperature range | -20º C ~+65º C |
| Storage Temperature range | -30º C – +70º C |
| Overall dimensions(L×W×H) | 117.5×18×58 mm |
| Weight(kg) | about 0.13kg (net) |
| Display | LCD 5+2 = 99999.99kWh |
