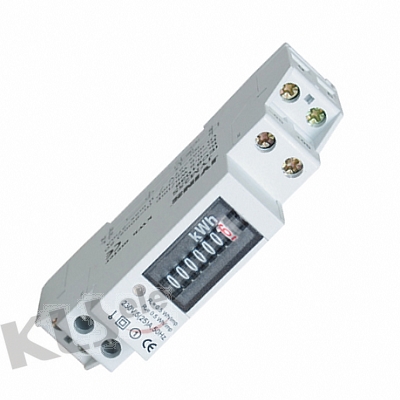

DIN-rail Energy Meter (Single Phase,1 Module)
Type KLS11-DMS-002A single phase Mini DIN rail Modular watt-hour meter is a kind of new style single phase electronic watt-hour meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 and class 2 single phase energy meter stipulated in National standard GB/T17215-2002 and international standard IEC62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. It has following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.
KLS11-DMS-002A ( Electronic counter TYPE,1P2W ) Electrical Characteristics:
| Accuracy Class | 1.0 class |
| Reference Voltage ( Un) | 110/220/230/240V AC |
| Operating Voltage | 160-300V AC |
| Impulse Voltage | 6KV 1.2μS waveform |
| Rated Current (Ib ) | 5 A |
| Maximum Rated Current (Imax) | 25/32/40/45/50/65 A |
| Operating Current Range | 0.4% Ib ~ Imax |
| Operating Frequency Range | 50-60 Hz |
| Internal Power Consumption | <2W/10VA |
| Operating Humidity range | <75% |
| Storage Humidity range | <95% |
| Operating Temperature range | -20º C ~+65º C |
| Storage Temperature range | -30º C – +70º C |

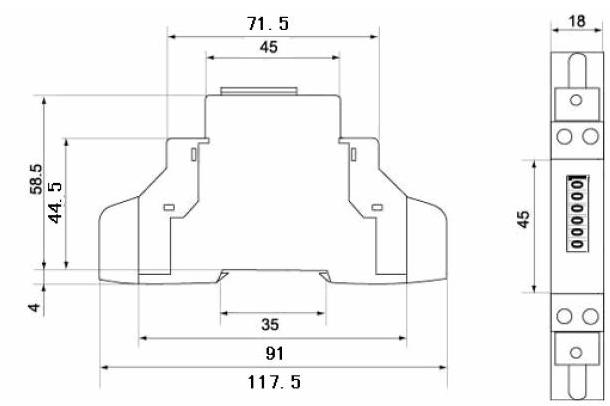

| Overall dimensions (L×W×H) | 117.5×18×58 mm |
| Weight(kg) | about 0.13kg (net) |
| Display | Electronic counter 6+1 = 999999.9kWh |
