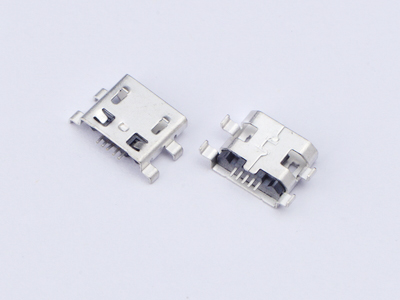

CONN RCPT 5POS MICRO USB DIP,MID MOUNT

  • Model: KLS1-4238
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material
Housing:LCP,UL94V-0,Black.
Contact:Copper Alloy.Gold
Contact Type: Stamped
Shielding: Stainless Steel Matt Tin Plated.

Electrical:
Current Rating:1.8 A Pin1 & Pin 5
                      1.0 A Other Pins
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Withstanding Voltage: 100 Vac/Min.
Insulation Resistance:1000MΩ Min.
Operating Temperature: -40°C Up To +85°C
