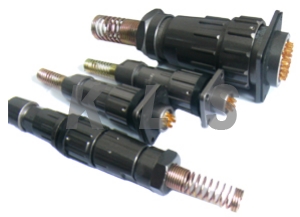

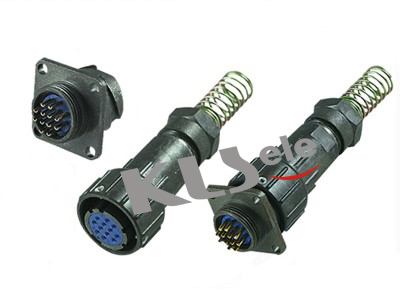

Circular Connector FQ Type

  • Model: KLS15-226-FQ
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Circular Connector (Safty apporval: CE / Water proof Ip≥67 )

Introduction:
KLS15-226-FQ series waterproof round electric connector accord with Ministry of the Electronics Industry components and parts industrial administration bureau office criticize standard DZ4Q/RE008-84 make, advanced structure of producing etc., high dependability have, jack is it adopt high reliable squirrel-cage elasticity exposed to replacing the traditional line reed structure to exposed to, the products have the resistance of contacting low , anti-vibration , shock-resistant , such characteristics as the sealing is strong, the seat connection of the plug is joined fast for the mouth type of the card , simple to use , easy to operate, widely used in the electric connection among various kinds of electronic equipment.

TECHNICAI CHARACTERISTICS:
Temperature: -55°C  ~ +105°C
Relative humidity: 98± 3%  at 40°C
Vibration:  10-2000HZ,  150m/s2
Shock : 500m/s2
Atmospheric : 1 KPa
Resistance: ≥ 0.1Ω
Endurance: 500 cycles

Experimental voltage (50HZ )
Exposed to the centre-to
-centre spacing correctly
Under the normal condition After test moistly
≥ 3.5mm 1500V 1000V
2.8mm 1200V 800V
Experimental voltage (50HZ ) under the low pressure condition
Atmospheric pressure Exposed to the centre-to-centre spacing correctly
≥ 3.5mm 2.8mm
46.7 1000V 730V
8.5 500V 400V
4.4 400V 300V
Insulating resistance
Under the normal condition Under the high-
temperature condition
After test moistly
≥ 5000MΩ ≥ 500MΩ ≥ 100MΩ
