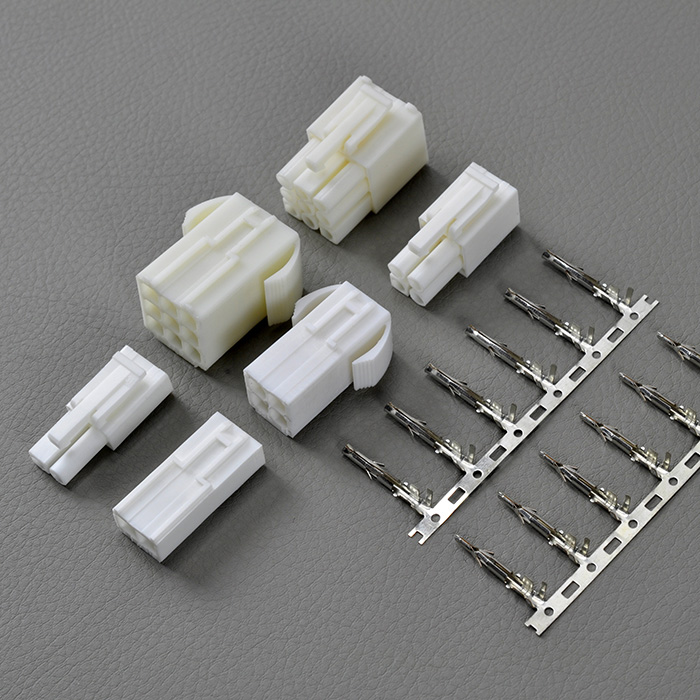

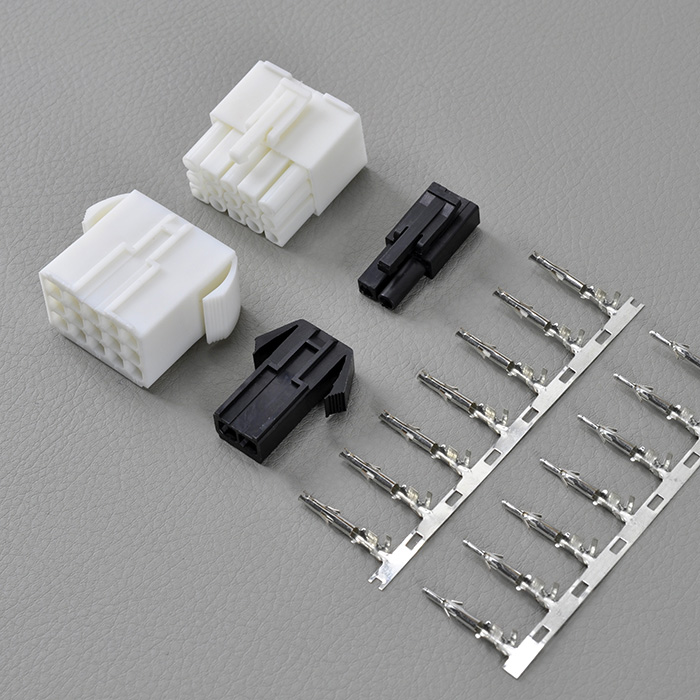

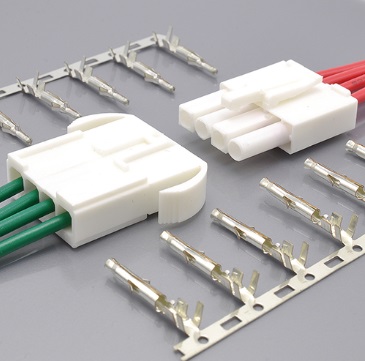

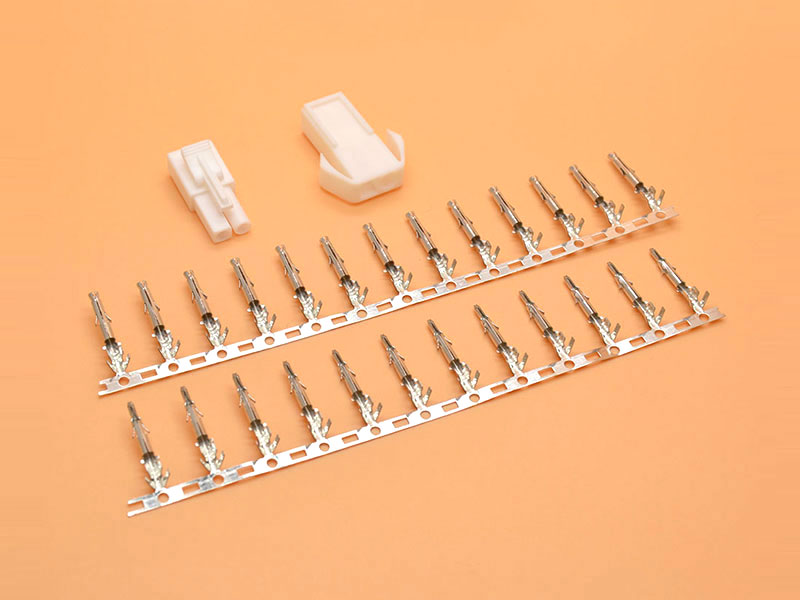

4.50mm Pitch JST EL 4501 4502 Wire To Wire Connector

Order information:
KLS1-XM1-4.50-1×2-FH
Pitch:4.50mm
1-Single layer  2-Double layer   3-Three layer
2-No.of 2~15 pins
FH-Female Housing  MH-Male Housing  FT-Female Terminal   MT-Male Terminal

Specifications
◆Material: PA66 UL 94V-2/UL94V-0
◆Finish : Plated Tin over Nickel
◆Current rating:10.0A AC,DC
◆Voltage rating:300V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#16~#24

KLS1-XM1-4.50.pdf
