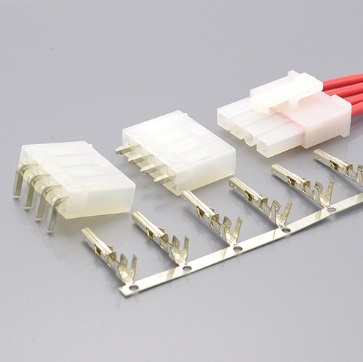

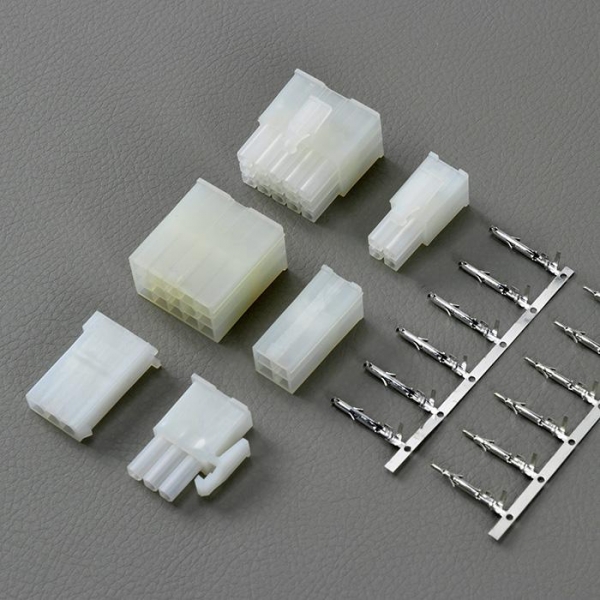

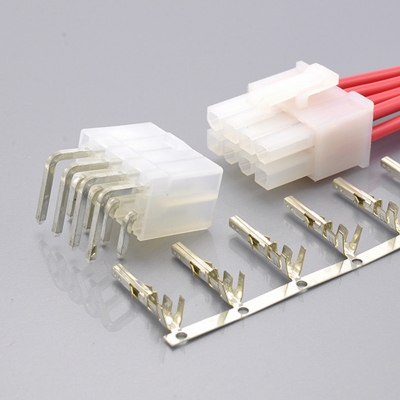

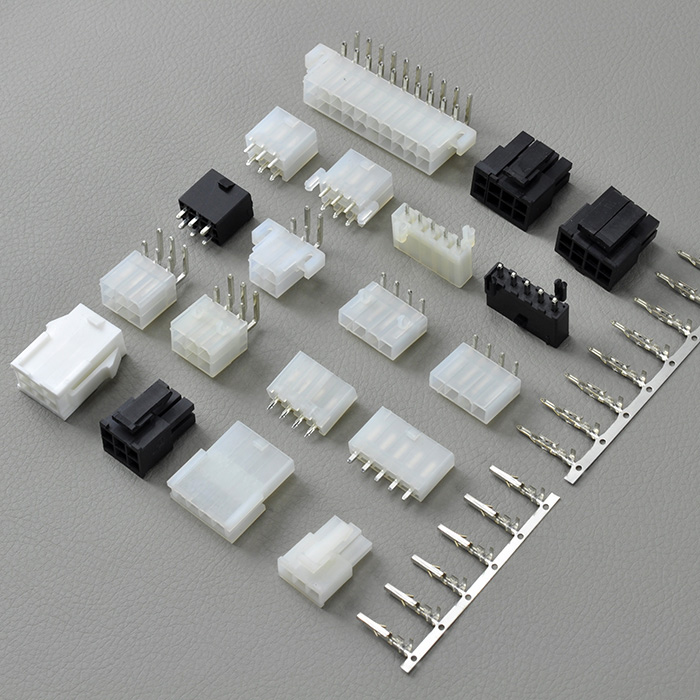

4.20mm Pitch Molex Mini-Fit JR 5556 5557 5559 5566 5569 Wire To Board Connector

  • Model: KLS1-4.20
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

4.20mm Pitch Molex Mini-Fit JR 5556 5557 5559 5566 5569 Wire To Board Connector

Order information:
KLS1-4.20-1×02-MH-口
Pitch:4.20mm
1-Single layer  2-Double layer
02-No.of 02~24 pins
FH-Female Housing  MH-Male Housing  FT-Female Terminal   MT-Male Terminal  S SW SB-Straight male pin  R RW RB-Right angle male pin
Color 口:NONE-Natutal  B-Black

Specifications
◆Material: PA66,UL 94V-2/UL94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:9.0A AC,DC
◆Voltage rating:600V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range  : AWG#16~#24
