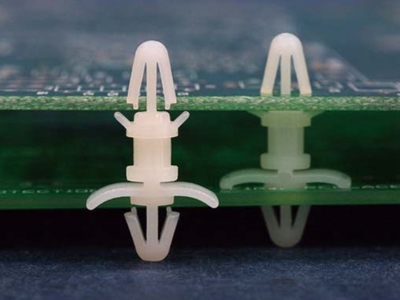

4.0/4.8mm Spacer Support

  • Model: KLS8-0244
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

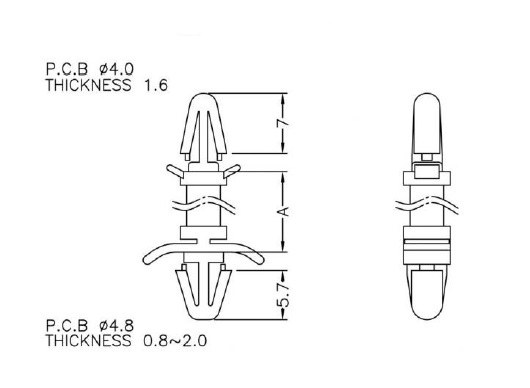

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-0244-CS-04 4.0 4.0 1.6 4.8 0.8~2.2 Natural 1000
L-KLS8-0244-CS-05 5.0 4.0 1.6 4.8 0.8~2.2 Natural 1000
L-KLS8-0244-CS-06 6.3 4.0 1.6 4.8 0.8~2.2 Natural 1000
L-KLS8-0244-CS-07 7.0 4.0 1.6 4.8 0.8~2.2 Natural 1000
L-KLS8-0244-CS-09 9.2 4.0 1.6 4.8 0.8~2.2 Natural 1000
L-KLS8-0244-CS-10 10.0 4.0 1.6 4.8 0.8~2.2 Natural 1000
L-KLS8-0244-CS-13 12.5 4.0 1.6 4.8 0.8~2.2 Natural 1000
L-KLS8-0244-CS-16 15.7 4.0 1.6 4.8 0.8~2.2 Natural 1000
L-KLS8-0244-CS-19 19 4 1.6 4.8 0.8~2.2 Natural 1000
L-KLS8-0244-CS-20 20 4 1.6 4.8 0.8~2.2 Natural 500
L-KLS8-0244-CS-22 22 4 1.6 4.8 0.8~2.2 Natural 500
L-KLS8-0244-CS-25 25.4 4 1.6 4.8 0.8~2.2 Natural 500
L-KLS8-0244-CS-29 28.6 4 1.6 4.8 0.8~2.2 Natural 500
L-KLS8-0244-CS-30 30 4 1.6 4.8 0.8~2.2 Natural 500
L-KLS8-0244-CS-35 35 4 1.6 4.8 0.8~2.2 Natural 500
L-KLS8-0244-CS-38 38 4 1.6 4.8 0.8~2.2 Natural 500
L-KLS8-0244-CS-45 45 4 1.6 4.8 0.8~2.2 Natural 500
