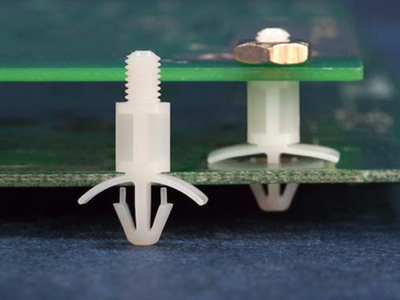

4.0/4.8mm Spacer Support

  • Model: KLS8-0243
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature:  0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H  50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance:    B-130°C  (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
  mm mm mm mm mm   pcs
L-KLS8-0243-05 5.0 4.0 1.2~1.7 4.8 0.8~2.0 Natural 1000
L-KLS8-0243-06 6.3 4.0 1.2~1.7 4.8 0.8~2.0 Natural 1000
L-KLS8-0243-08 8.0 4.0 1.2~1.7 4.8 0.8~2.0 Natural 1000
L-KLS8-0243-10 10.0 4.0 1.2~1.7 4.8 0.8~2.0 Natural 1000
L-KLS8-0243-13 12.7 4.0 1.2~1.7 4.8 0.8~2.0 Natural 1000
L-KLS8-0243-16 15.9 4.0 1.2~1.7 4.8 0.8~2.0 Natural 1000
L-KLS8-0243-20 20.0 4.0 1.2~1.7 4.8 0.8~2.0 Natural 1000
L-KLS8-0243-25 25.0 4.0 1.2~1.7 4.8 0.8~2.0 Natural 1000
