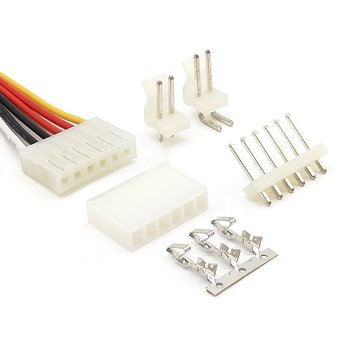

3.96mm Pitch Molex KK396 KK2139 Wire To Board Connector

  • Model: KLS1-3.96
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

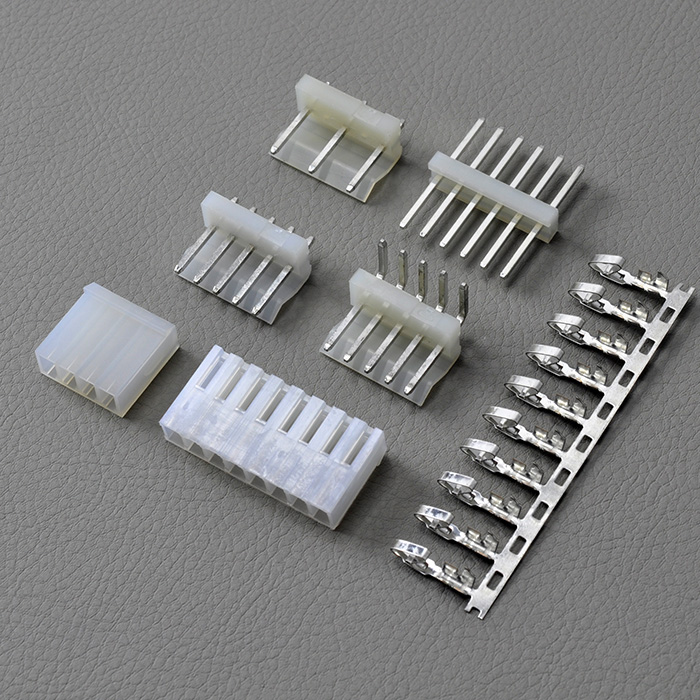

3.96mm Pitch Molex KK396 KK2139 Wire To Board Connector

Order information:
KLS1-3.96-XX-H
Pitch:3.96mm
XX-No.of 02~20 pins
H-Housing  T-Terminal  S-Straight male pin  R-Right angle male pin

Specifications
◆Material: PA66 UL 94V-2
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:7.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#18~#24
