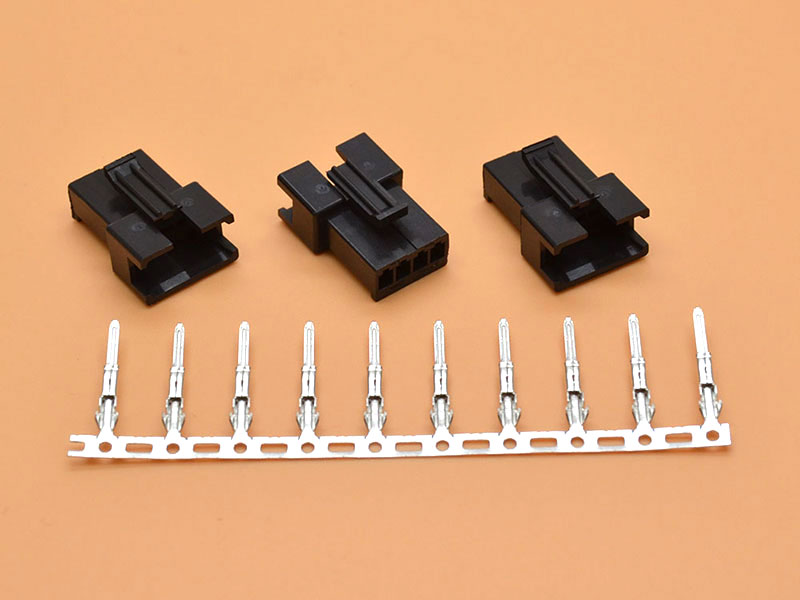

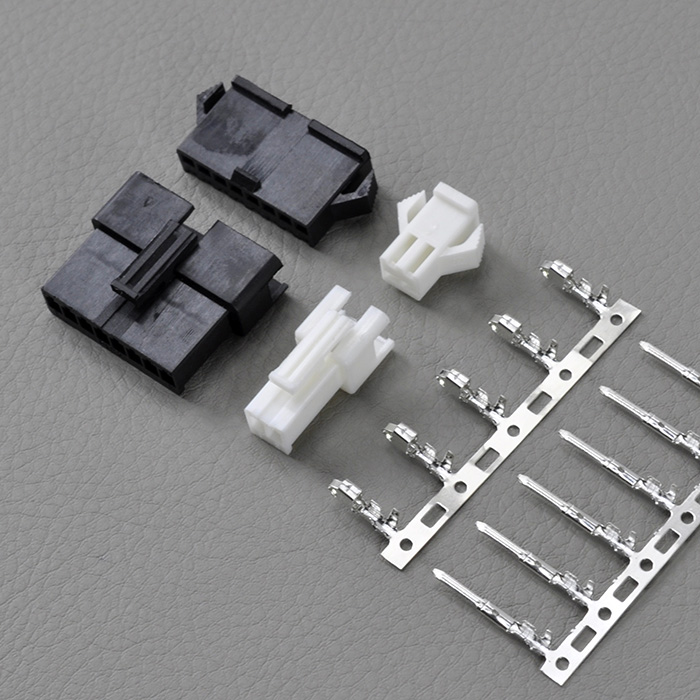

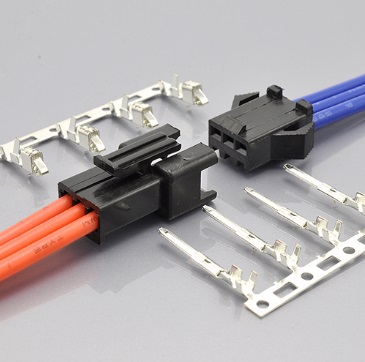

2.50mm Pitch JST SM Type Wire To Wire Connector

  • Model: KLS1-XM1-2.50
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.50mm Pitch JST SM Type Wire To Wire Connector

Order information:
KLS1-XM1-2.50-XX-FH
Pitch:2.50mm
XX-No.of 02~12 pins
MH-Male Housing  FH-Female Housing   MT-Male Terminal    FT-Female Terminal

Specifications
◆Material: PA66 UL 94V-2
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:500MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#22~#28
