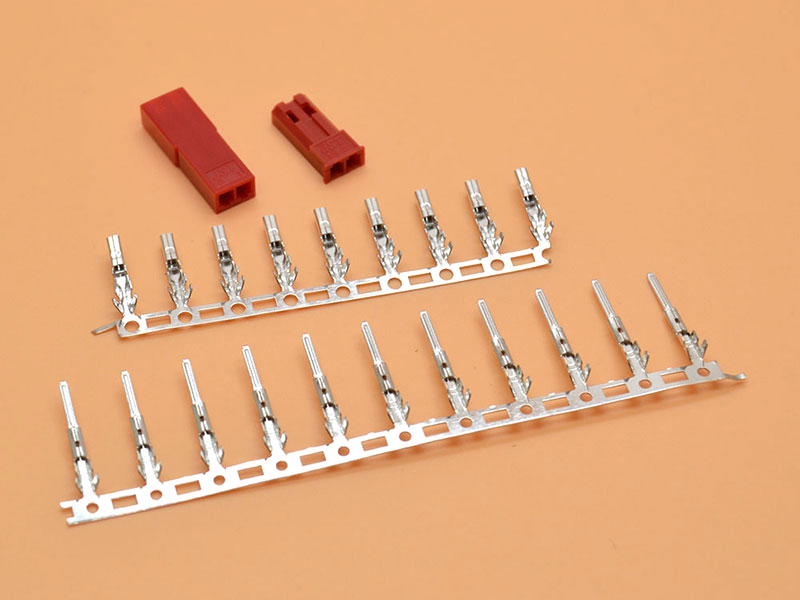

2.50mm Pitch JST SYP SYR Type Wire To Wire Connector
- Product Details
2.50mm Pitch JST SYP SYR Type Wire To Wire Connector
Order information:
KLS1-XM2-2.50-02-FH
Pitch:2.50mm
XX-No.of 02 pins
MH-Male Housing FH-Female Housing MT-Male Terminal FT-Female Terminal
Specifications
◆Material: PA66 UL 94V-2
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:500MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#22~#28
