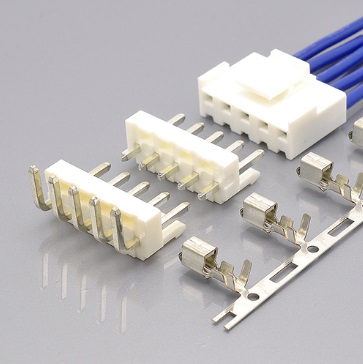

3.96mm JST VH Type Wire To Board Connector
- Product Details
3.96mm JST VH Type Wire To Board Connector
Order information:
KLS1-3.96A-XX-H
Pitch:3.96mm
XX-No.of 02~16 pins

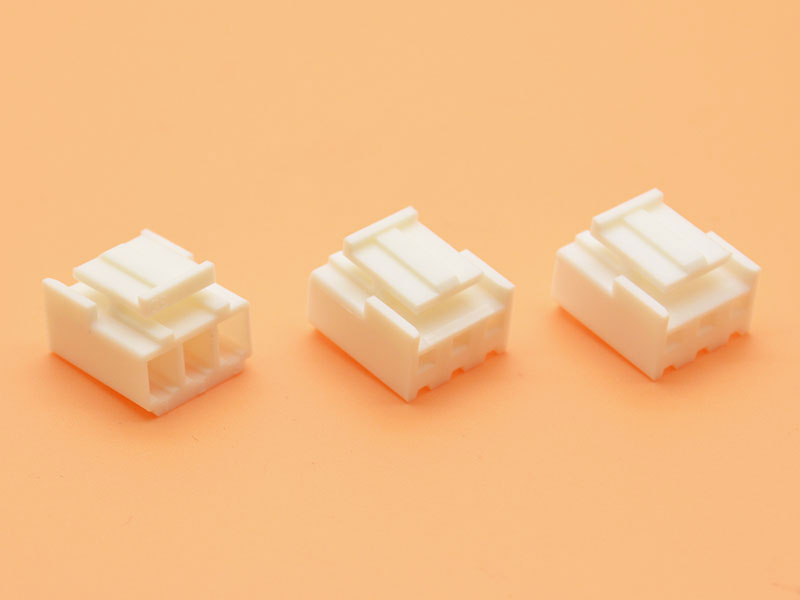

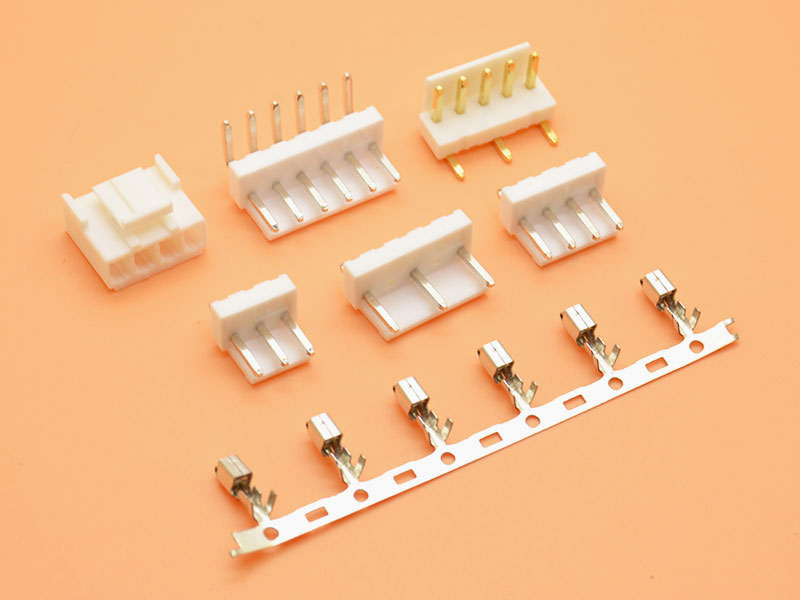

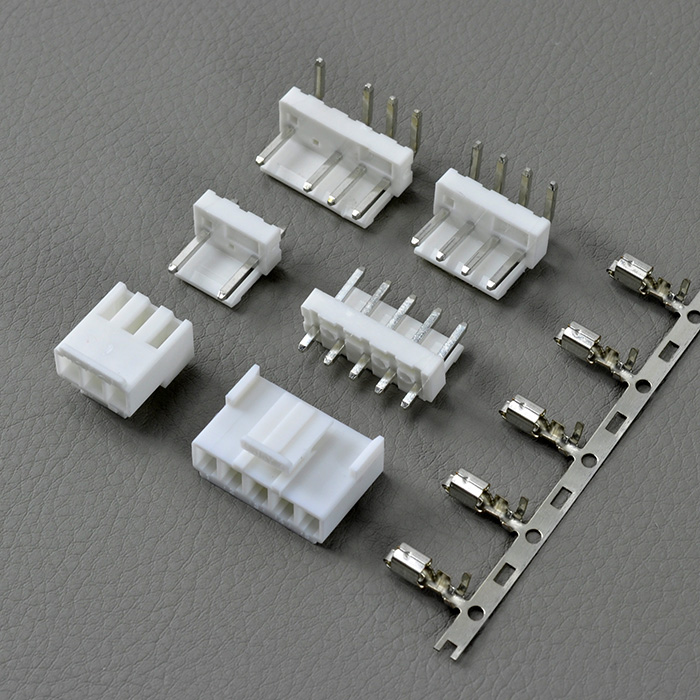

H-Housing T-Terminal S-Straight male pin R-Right angle male pin VM-Vertical SMT Pin RM-Horizontal SMT Pin
Specifications
◆Material: PA66/PA6T UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:7.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#18~#22
