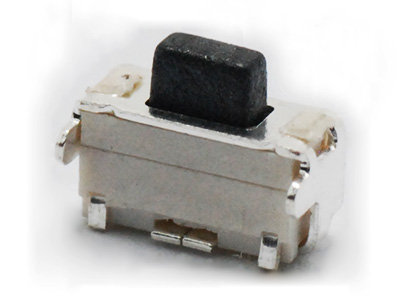

2×4 Tact Switch Series

  • Model: KLS7-TS2404
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

ELECTRICAL
1.Rating: 50mA 12V DC
2.Contact Resistance : 100mΩ Max
3.Insulation Resistance: 100MΩ Min
4.Dielectric Strength : 250V AC for 1min
5.Electrically Life:50000cycles
6.Environment temperature:-30ºC~+80ºC
7.Operating Force: 160/250(±30gf)
8.Seal temperature:260ºC~ 280ºC

Materials:
A. cards: phosphor bronze 0.15, silver
B. Base: LCP, white
C. Reed: Imported steel impervious cover silver
D.Plastic cover: LCP, white
E. button: LCP, black
F. Cover: phosphor bronze 0.2, silvered
Schematic
Installation Referring to FIG.
