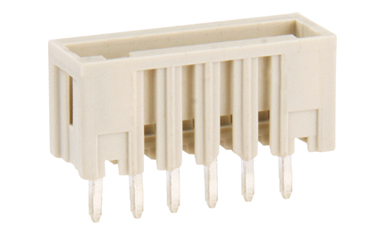

2.50mm Solder pin holder (fail-safe)

  • Model: KLS2-MPV-2.50
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Number of plies Single deck
Port number 2~12

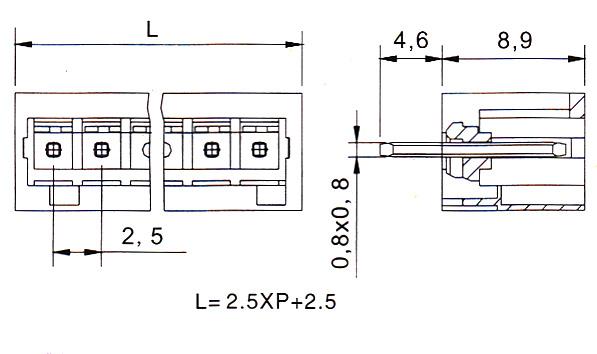

Pitch 2.5mm
Color Light gray
Connection technology Spring cage clamp connection technology
Product conform standard IEC61984、UL1059、CSA-C22.2 No. 158 etc
Insulation material PA66
Flammability rating conform to UL94 V0
Rated voltage V 250V
Rated current A 4A
UL Rated voltage V 300V
UL Rated current A 5A
