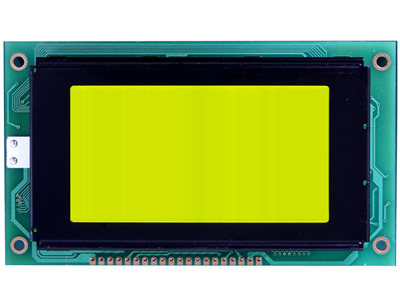

Display: 128×64 dot-matrix Type
OUTLINE: 113.2×65.0x12.8
V.A.: 73.2×38.8
Dot: 0.458×0.458
View angle:6  O’clock
LCD type: STN/Transflective/Positive/Yellow-Green
Driver Condition:1/64 duty cycle, 1/9 Bias
Backlight type: Yellow-Green/Side Backlight
Controller: SBN0064G or equivalent
Operating Temp.:-10ºC～+60ºC

KLS9-12864A.pdf
