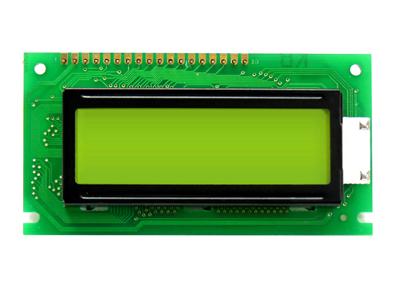

Display: 122×32 dot-matrix Type
OUTLINE: 84.0×44.0x13.5
V.A.: 60.0×18.0
Dot: 0.36×0.41
View angle:6 O’clock
LCD type: STN/TRANSFLECTIVE/POSITIVE/ Yellow-Green
Driver Condition:1/32 duty cycle, 1/6 Bias
Backlight type: Yellow-Green Bottom Backlight
Controller: AT1520OA or equivalent
Operating Temp.:-10ºC～+60ºC
