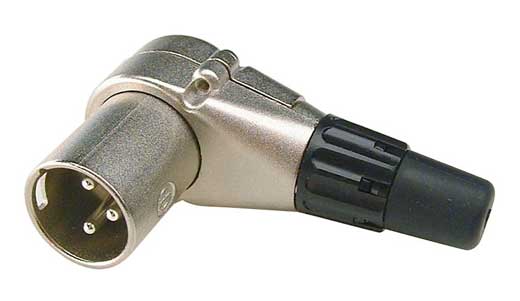

XLR Plug Connector-Right

Electrical Specification:

Number of contacts: 3
Contact Resistance: ≤ 3 mOhms
Insulation Resistance Initial: > 2 GOhms
After Damp Heat Test: > 1 GOhms
Dielectric Strength: 1500 V dc
Rated current : 16 A
Mechanical Lifetime: >1000 cycles
Insertion / Withdrawal Force:Cable O.D. Range: 4.0 mm – 8.0 mm
Temperature Range: -30° C to + 80° C

KLS1-XLR-P02 .pdf
