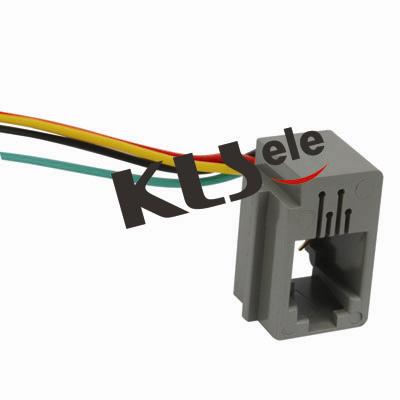

Wired Modular Jack:
Current Rating:1.5AMPS
Voltage Rating:125VAC
Withstanding Voltage:AC1000V RMS 50Hz or 60Hz 1Min
Insulation Resistance:100Megohms Min
Contact Resistance:39Millmhos Max

Mechanical:
Cable To Plug Tensile Strength:7.7Kg Mini
Durability:750Mating Cycles Mini

Material:
Wire Styles: UL1061 26AWG Strands.
Housing:Polycarbonate(PC)UL 94V-0 OR UL 94V-2
Contact:Phosphor Bronze,Hard Gold Plated Over Nickel
Shieldinjg:0.25mm Thickness Copper Alloy With Tin Plated
Gold Plating:3u Inch,6u Inch,15u Inch,30u Inch,50u Inch
Working Temperature : -40°C ~80°C

KLS12-199-4p.pdf
