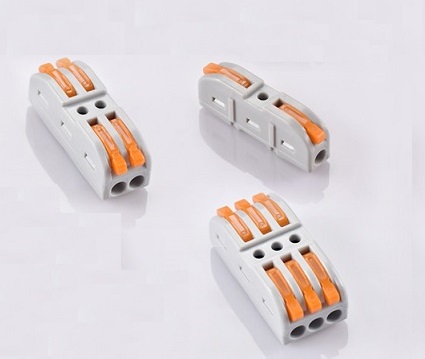

Wire Splice Connectors,For 4mm²,01 02 03

  • Model: KLS2-282-XX-00 &

   KLS2-282-XX-01

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

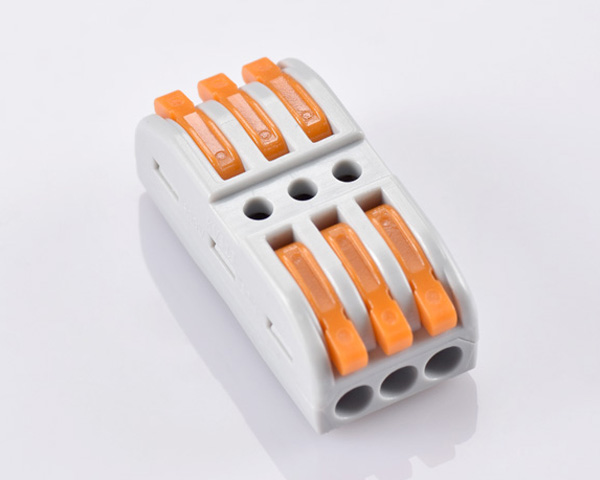

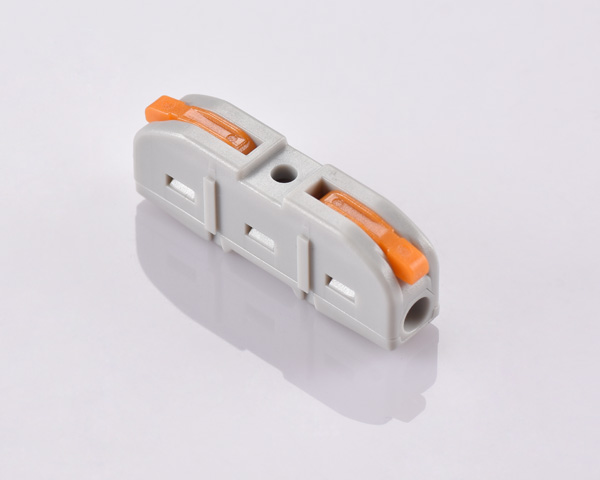

Wire Splice Connectors,For 4mm²,01 02 03 Pins

Order information:
KLS2-282-XXP-0-0
XXP-No.of 01,02,03 pins
0-Gray shell

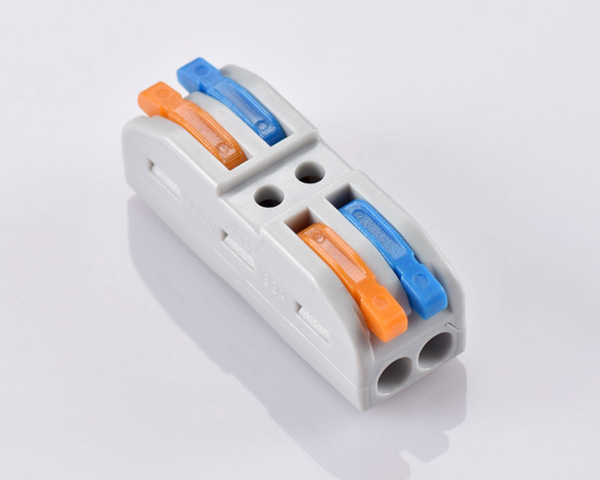

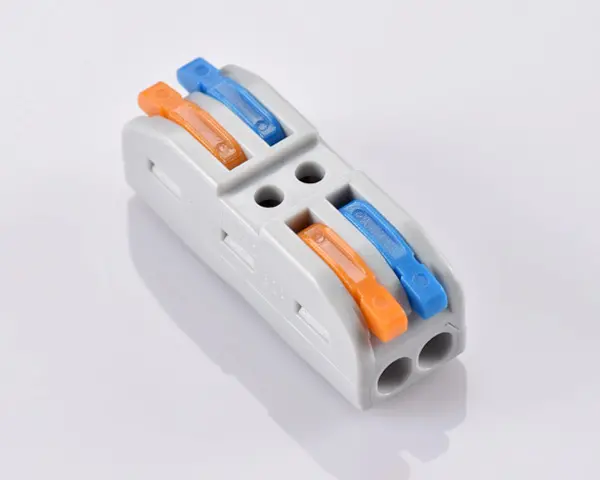

0-Orange press handle   1-Color press handle

Electrical data
Rated voltage (II / 2)                         250V / 600V
Rated impulse voltage (II / 2)             4 kV
Rated current                                       32 A
Legend (ratings)                                  (II / 2)
Overvoltage category II
Pollution degree  2
Connection data
Connection technology  CAGE CLAMP®
Actuation type    Lever
Connectable conductor materials   Copper
Nominal cross section   2.5 mm²
Solid conductor   0.08   ~ 2.5 mm² / 28 ~ 12 AWG
Stranded conductor  0.08   ~ 2.5 mm² / 28 ~ 12 AWG
Fine-stranded conductor 0.08   ~ 4.0 mm² / 28 ~ 12 AWG
Strip length   9~10 mm / 0.35~0.39 Inch
Type of wiring   Side-entry wiring
Material Data
 Color  Gray
Flammability class per UL94  V2
