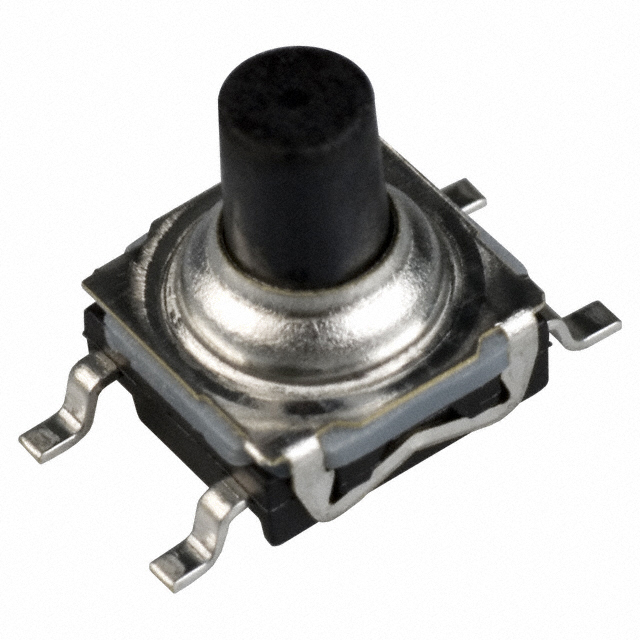

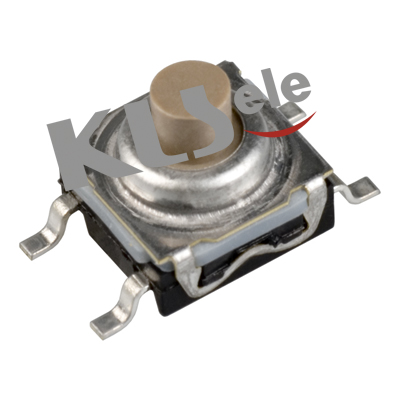

SMD Tactile Switch

Rating: 50mA 12VDC
Contact Resistance : 50mΩ max(initial)
Insulation Resistance: 100MΩ（minDC 250V）
Dielectric Strength : AC250V(50/60Hz for 1minute)
Electrically Life: 100000cycles
Environment temperature: -25℃-70℃
Operating Force: 180/250(±30gf)
Seal temperature:260℃-280℃

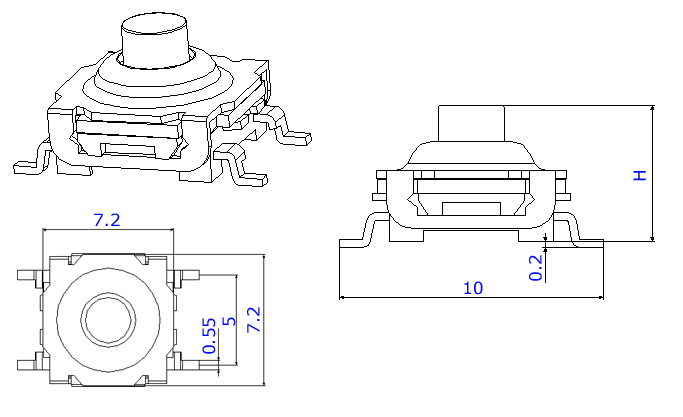

Height: H1=5.0mm H2=9.9mm H3=4.3mm
