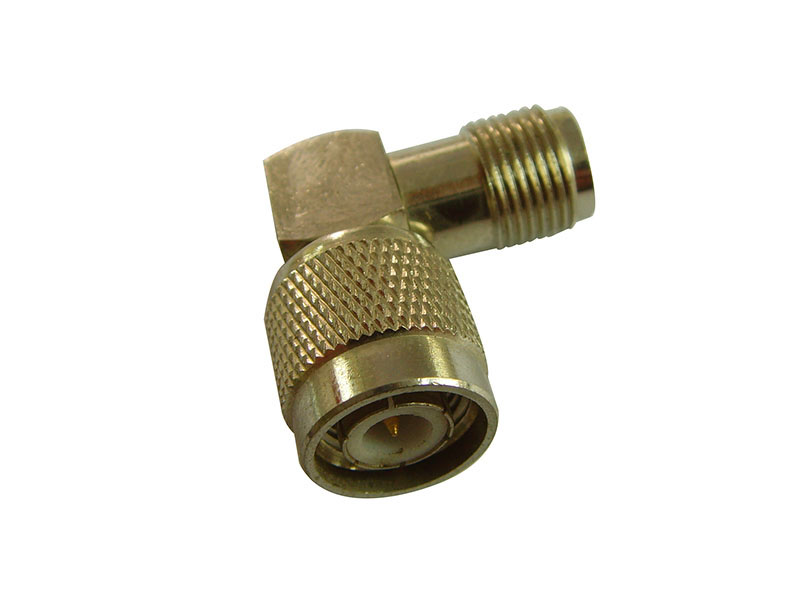

TNC Adapter

  • Model: KLS1-TNC101
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

1- Center Contact: Brass,Gold-plated
2- Body-diecast:   Brass,Nickel-plated
3- Insulation:     PTFE
4- Electrical
    Impedance: 50 Ω
    Frequency Range:0~11 GHz Max.
    Voltage Rating: 500 volts
    Withstand Voltage:1500V
    Insulation Resistance:5000 MΩ
    V.S.W.R:<1.22
    Contact resistance:
      Centre contact: 1.5 mΩ Max.
      Outer contact:  0.2  mΩ Max.
5- Mechanical
   Mating: 7/16 threaded coupling
6- Durability(mating):500(cycles)
