Subminiature Circular Connector & M12 Connector

  • Model: KLS15-236
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Circular Connector (Water proof  Ip≥67)

Products introduction:

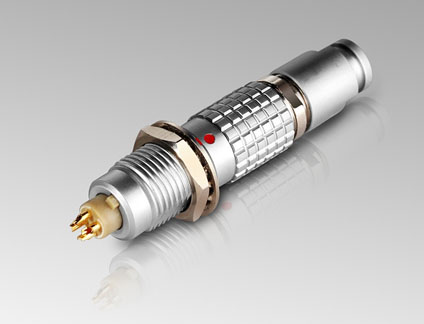

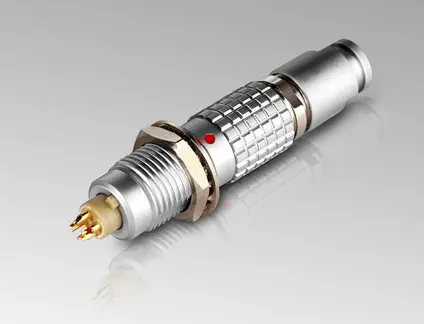

KLS15-236 series small connectors has the features of small size,lightweight,nice appearance, similar with lemo series connectors,push-pull self-latching connecting system,mated simply and reliability,suitable for high-density.They are widely used for connection between sensors,electrical instruments and equipments.

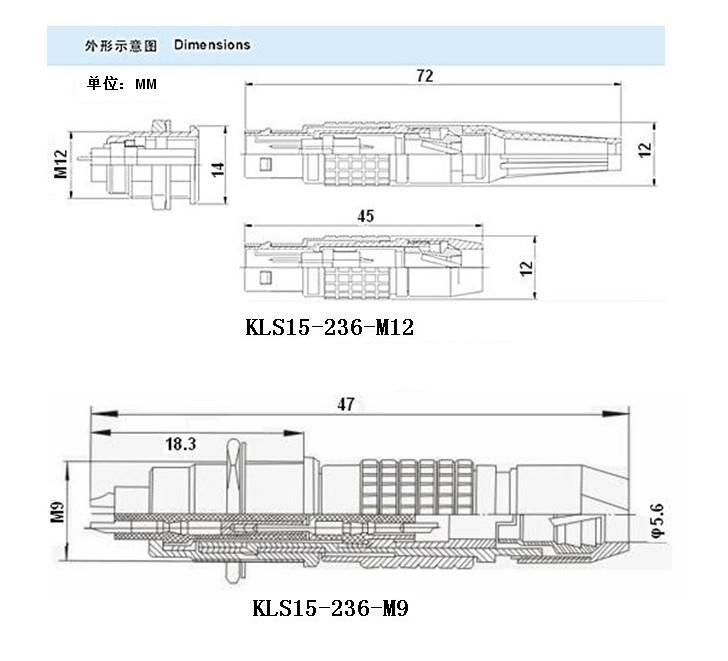

ORDER INFORMATION:
KLS15-236-M9-2M1
(1) (2)(3)
(1) M9:   M9 type
(2) 2:      2 pins (2,3,4,5,6,7,8,10pins)
(3) M1:   F1-Plug   M1-Socket

The hole place arranges(comply with the needle direction):

PLUG 2PIN M9-2F1/M12-2F1 IP67
3PIN M9-3F1/M12-3F1 IP67
4PIN M9-4F1/M12-4F1 IP67
5PIN M9-5F1/M12-5F1 IP67
6PIN M9-6F1/M12-6F1 IP67
7PIN M9-7F1/M12-7F1 IP67
8PIN M12-8F1 IP67

SOCKET 2PIN M9-2M1/M12-2M1 IP67
3PIN M9-3M1/M12-3M1 IP67
4PIN M9-4M1/M12-4M1 IP67
5PIN M9-5M1/M12-5M1 IP67
6PIN M9-6M1/M12-6M1 IP67
7PIN M9-7M1/M12-7M1 IP67
8PIN M12-8M1 IP67
Introduction Mini electronic connector is used to join the circuit between advance sensors and accurate electronic instrument.It has a small dimension and high dense contact.Due to its push-pull self-latching joint,it is easy to use and have a reliable performance.
  Working temperature: -55°C  ~ +105°C
Relative humidity: 95± 3%  at 40°C± 2°C
Atmospheric pressure: 1KPa
Vibration: 10-2000HZ,150m/s2
Collide : 500m/s2
Permanent acceleration: 500m/s2
Endurance:1000 cycles
KLS15-236-M9  Electrical Characteristics:

Exposed to the diameter correctly Electric current Voltage (Ac/Dc)
0.5mm 2A 0.2Kv/0.3Kv
0.7mm 3A 0.25Kv/0.375Kv
0.9mm 5A 0.3Kv/0.45Kv
Exposed to the diameter correctly Exposed to the resistance Contact the position correctly
Φ 0.9mm 4.5mΩ 2 core  3 core
Φ 0.7mm 7.0mΩ 4 core 5 core
Φ 0.5mm 8.5mΩ 6 core 7 core

————————————————————-

KLS15-236-M12  Electrical Characteristics:

Exposed to the diameter correctly Electric current Voltage (Ac/Dc)
0.5mm 2A 0.2Kv/0.3Kv
0.7mm 3A 0.25Kv/0.375Kv
0.9mm 5A 0.3Kv/0.45Kv
1.3mm 10A 0.4Kv/0.6Kv


Exposed to the diameter correctly Exposed to the resistance Contact the position correctly
Φ 1.3mm 3.5mΩ 2 core  3 core
Φ 0.9mm 4.5mΩ 4 core 5 core
Φ 0.7mm 7.0mΩ 6 core 7 core
Φ 0.7mm 7.0mΩ 8 core

Φ 0.5mm 8.5mΩ 10core
