Sub-miniature Rocker Toggle Switch

  • Model: KLS7-SRLS-102-A1 / KLS7-SRLS-103-A1/

    KLS7-SRLS-202-A1 / KLS7-SRLS-203-A1

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

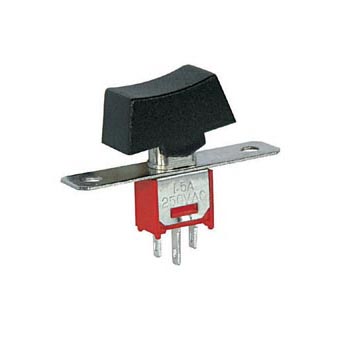

KLS7-SRLS-102-A1         ON-ON                 3P
KLS7-SRLS-103-A1         ON-OFF-ON         3P

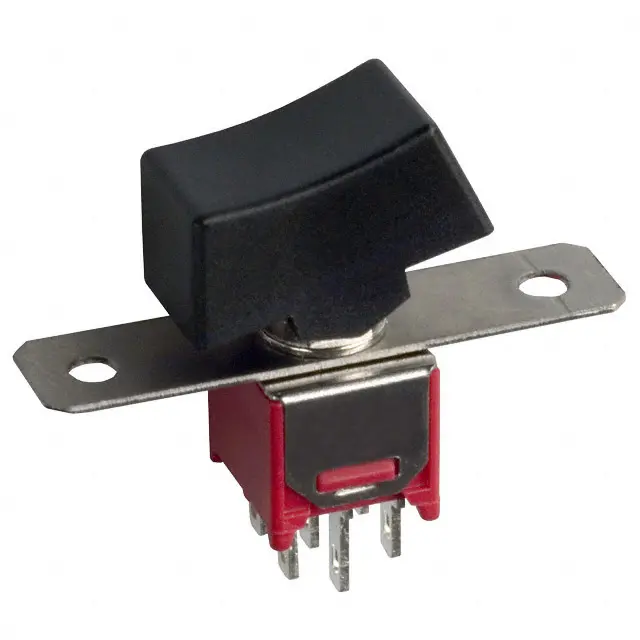

KLS7-SRLS-202-A1         ON-ON                 6P
KLS7-SRLS-203-A1         ON-OFF-ON         6P
Sub-miniature Rocker Toggle Switch
SPECIFICATIONS
Rating: 3A 125VAC; 1.5A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1000V AC 1 Minute
Operating Temperature:-25ºC +65ºC
Electrical Life :20,000 cycles
